WINYING MACHINERY · HVAC DUCT FORMING
Lock Forming Machines
Choose a lock forming machine by the required profile, material and sheet thickness. Explore our equipment range for HVAC duct fabrication and custom tooling enquiries.
- Compare 15 reference lock-profile entries
- Find machines for different duct forming applications
- Review model-specific power and sheet capacities below
- Send your profile drawing for custom tooling enquiries
Profile references15
Machine selectionBy profile
Custom toolingOn request
Machine specifications vary by model and tooling. Please confirm the configuration for your required profile and material.

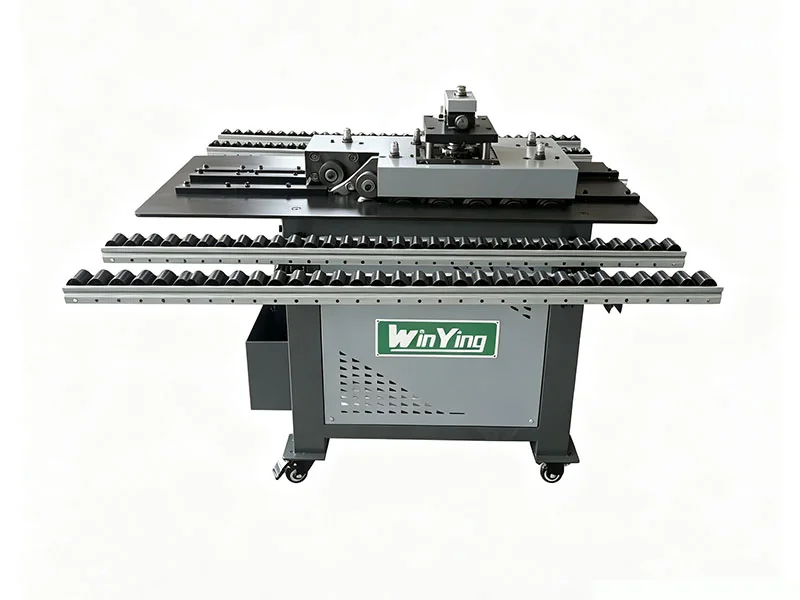

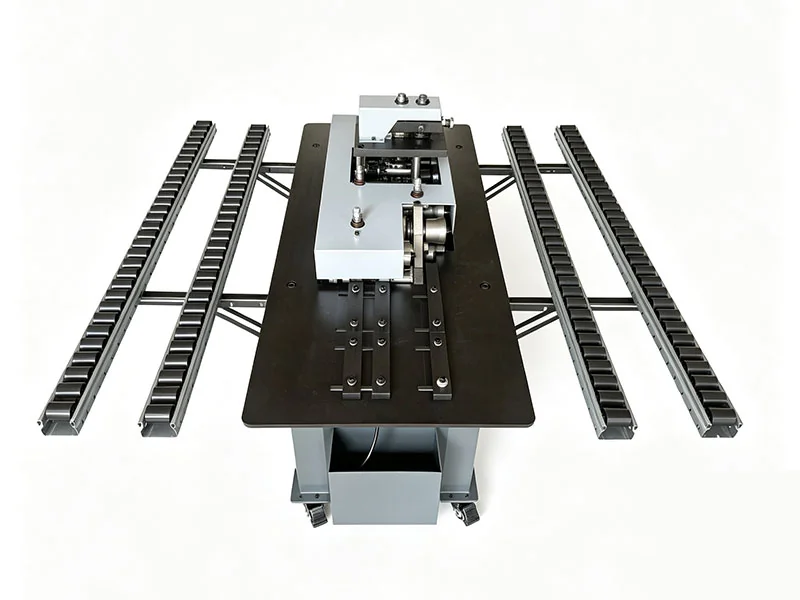

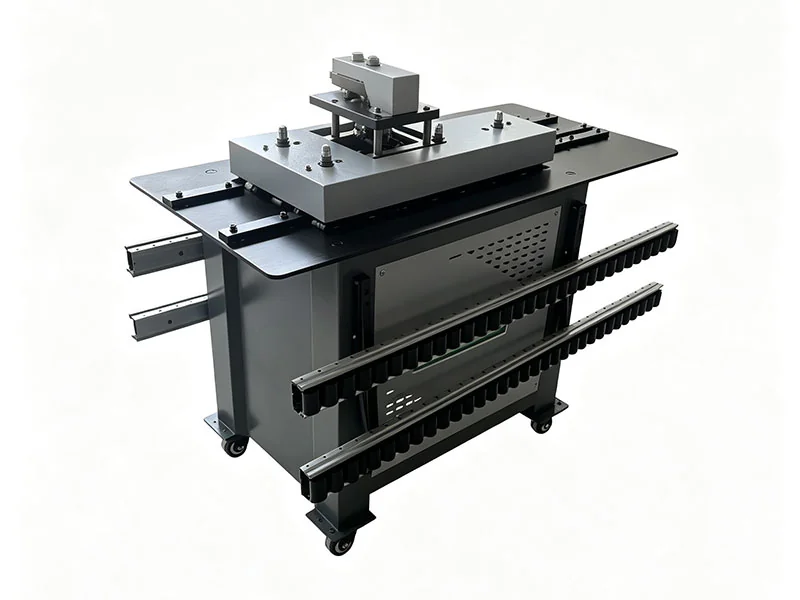

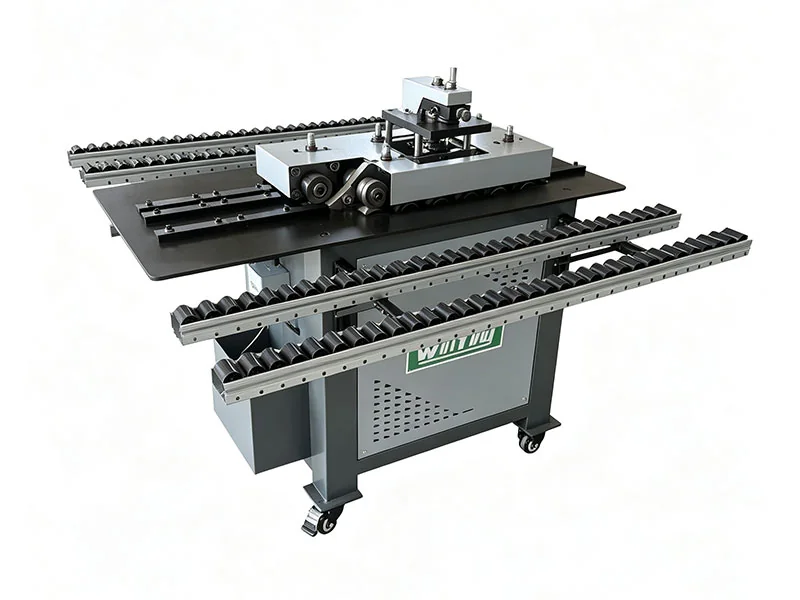

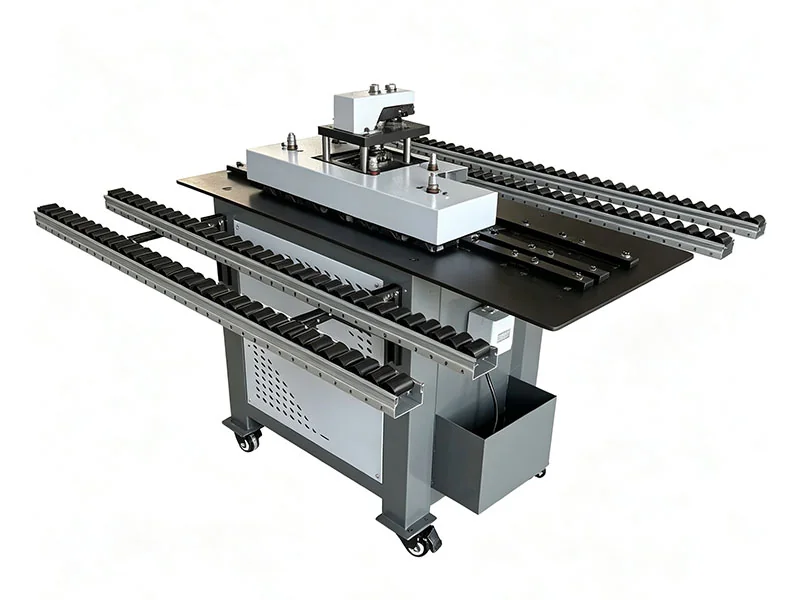

Five original machine photos. Actual appearance depends on model and tooling.
CHOOSE BY LOCK PROFILE
Start with the Profile You Need to Form
Browse the original lock-profile shapes and their corresponding part numbers from your KFS-12 manual.
Fold-skeleton
1981002
Rectangular skeleton
1981003
Z-skeleton
1981004
Insertion skeleton
1981005
Bend rectangular skeleton
1981006
Tokyo skeleton
1981001
1981001
Fold-skeleton
1981002
1981002
Rectangular skeleton
1981003
1981003
Z-skeleton
1981004
1981004
Insertion skeleton
1981005
1981005
Bend rectangular skeleton
1981006
1981006
Core-skeleton
1981007
1981007
Tokyo skeleton
1982001
1982001
Fold-skeleton
1982002
1982002
Rectangular skeleton
1982003
1982003
Z-skeleton
1982004
1982004
Insertion skeleton
1982005
1982005
Bend rectangular skeleton
1982006
1982006
Core-skeleton
1982007
1982007
S-skeleton
1982008
1982008
Original profile shapes are cropped directly from the supplied KFS-12 manual; no geometry has been redrawn.
KFS-12 REFERENCE PROFILES
Lock Profiles & Dimensions
Profile numbers, names, sheet-thickness ranges and dimensions transcribed from your KFS-12 manual. The profile shapes are cropped from the supplied KFS-12 manual without redrawing their geometry. Refer to the original manual for production tooling.
| No. | Shape | Name | Capacity (mm) | Specification (mm) | Dimension (mm) |
|---|---|---|---|---|---|
| 1981001 | Tokyo skeleton | 0.5–1.2 | 26 | 13.2 | |
| 1981002 | Fold-skeleton | 0.5–1.2 | 9 | 13.2 | |
| 1981003 | Rectangular skeleton | 0.5–1.2 | 6–13 | 13 | |
| 1981004 | Z-skeleton | 0.5–1.2 | 26 | 14 | |
| 1981005 | Insertion skeleton | 0.5–0.8 | 54 | 28 | |
| 1981006 | Bend rectangular skeleton | 0.5–1.2 | 8 | 8 | |
| 1981007 | Core-skeleton | 0.5–1.2 | 4–8 | 4–8 | |
| 1982001 | Tokyo skeleton | 0.5–1.5 | 29 | 14.5 | |
| 1982002 | Fold-skeleton | 0.5–1.5 | 10 | 14.5 | |
| 1982003 | Rectangular skeleton | 0.5–1.5 | 8–16 | 16 | |
| 1982004 | Z-skeleton | 0.5–1.6 | 4–8 | 4–8 | |
| 1982005 | Insertion skeleton | 0.5–1.0 | 54 | 28 | |
| 1982006 | Bend rectangular skeleton | 0.5–1.5 | 11 | 11 | |
| 1982007 | Core-skeleton | 0.5–1.5 | 9 | 14 | |
| 1982008 | S-skeleton | 0.4–0.8 | 92 | 28 |
LOCK FORMING MACHINE RANGE
Lock Forming Machines for HVAC Duct Fabrication
Choose a machine based on your required profiles. One machine can form one or multiple lock profiles.

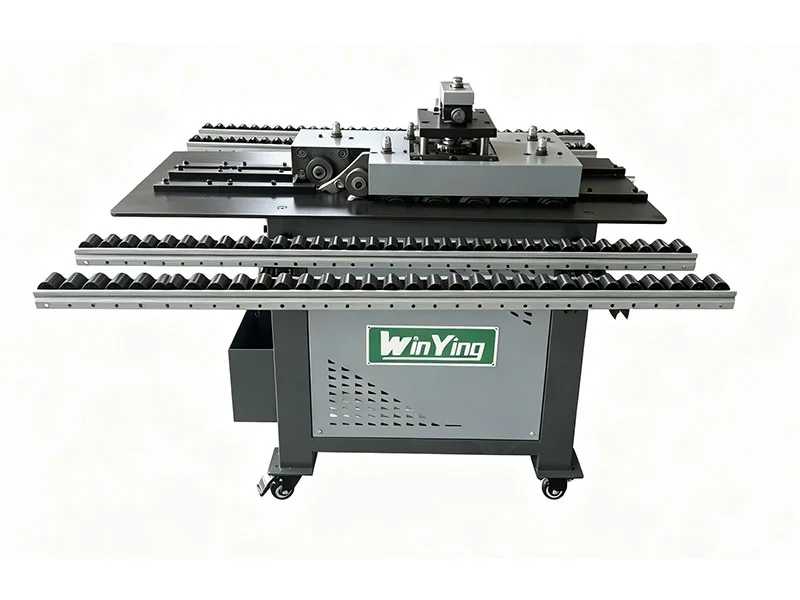

Pittsburgh Lock Forming Machine
Forms Pittsburgh lock seams for rectangular HVAC duct panels. Additional edge profiles depend on the selected roller tooling.

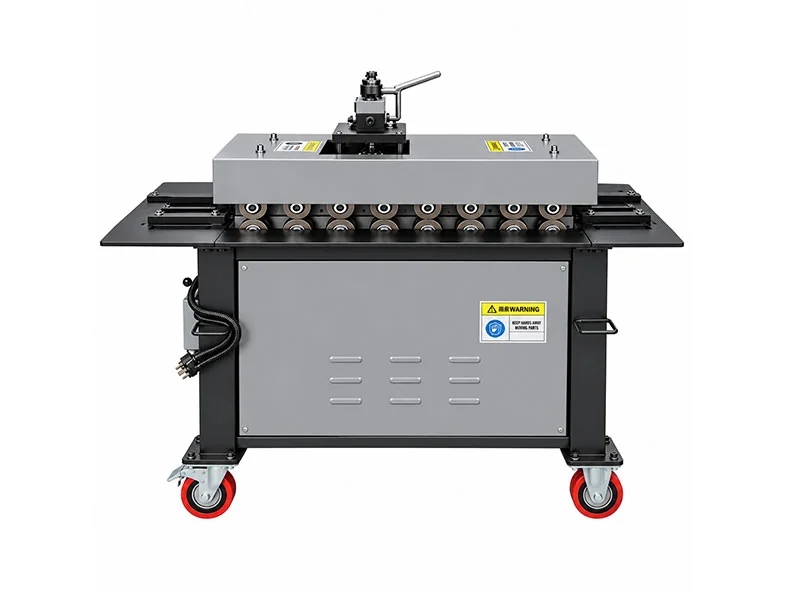

S Lock Forming Machine
Forms S-lock and matching cleat profiles for sheet-metal duct connections. Available shapes depend on the machine model and roller set.

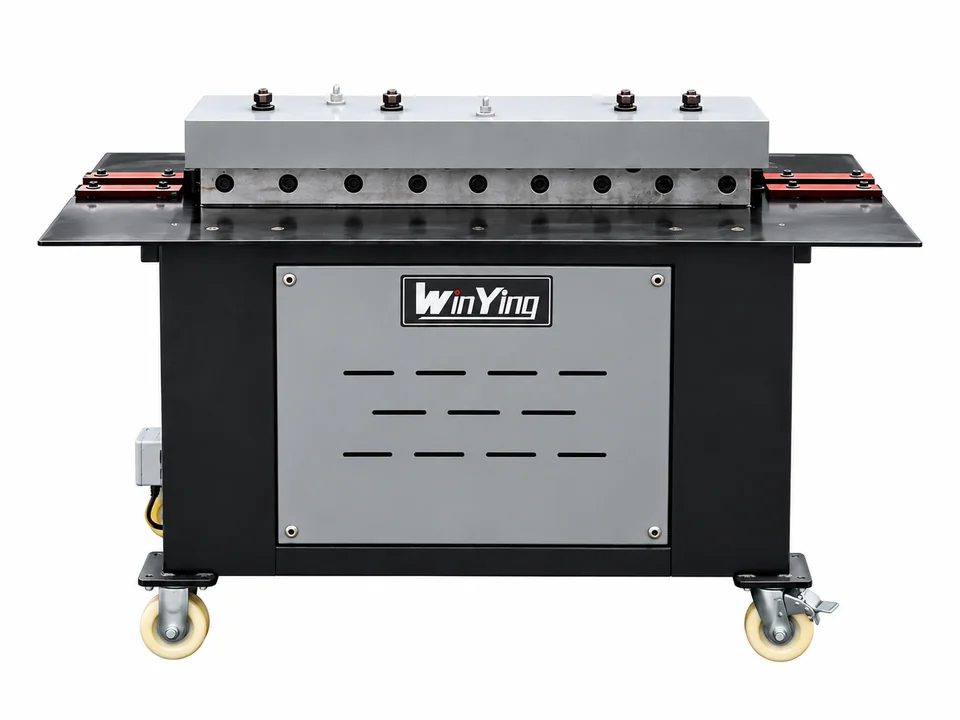

Snap Lock Forming Machine
Forms snap-lock edges for compatible sheet-metal corner connections. SNAP model: 0.4–1.0 mm sheet thickness.

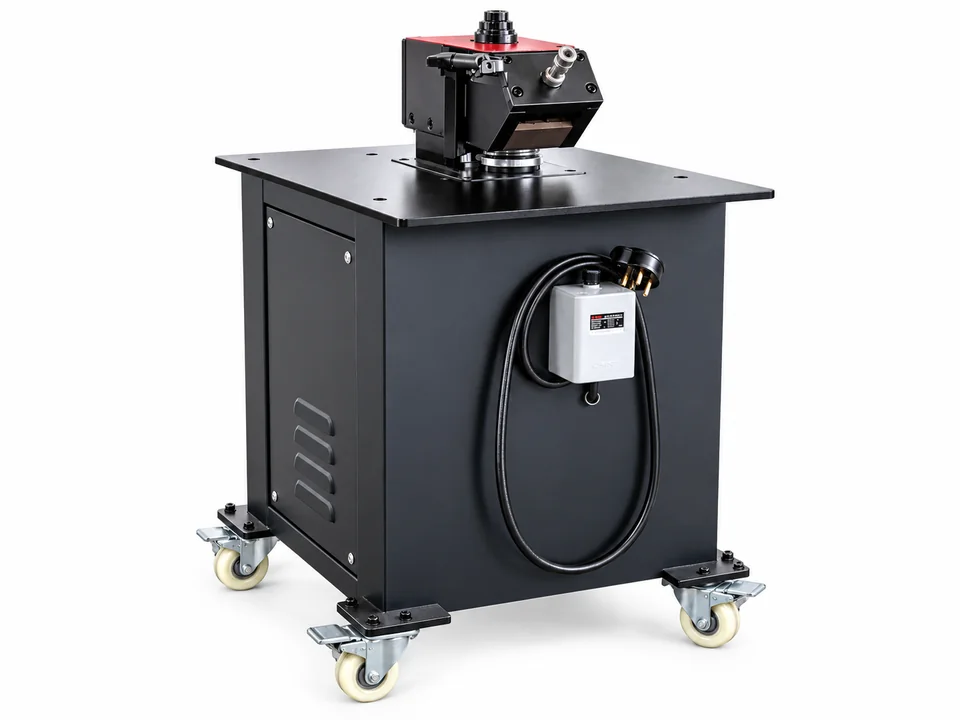

Elbow Lock Forming Machine
Forms conventional and snap-lock seams for curved HVAC duct elbows. Guided feeding reduces the need for continuous hand-holding. LA-15: 0.5–1.5 mm sheet thickness.
MACHINE SELECTION
Compare Machines & Supported Profiles
The following model names, power ratings and capacity ranges are taken from the supplied KFS-12 manual. The manual does not provide model-specific weight or overall dimensions.
| No. | Model | Power (kW) | Capacity (mm) | Weight (kg) | Overall Dimensions (L×W×H) |
|---|---|---|---|---|---|
| 1700110 | KFD-12 | 15 | 0.5–1.2 | Not specified | Not specified |
| 1700210 | KFD-16 | 22 | 0.5–1.5 | Not specified | Not specified |
| 1700130 | KFL-12 | 15 | 0.5–1.2 | Not specified | Not specified |
| 1700230 | KFL-16 | 22 | 0.5–1.5 | Not specified | Not specified |
| 1700140 | KFY-12 | 15 | 0.5–1.2 | Not specified | Not specified |
| 1700240 | KFY-16 | 22 | 0.5–1.5 | Not specified | Not specified |
| 1700150 | KFA-12 | 15 | 0.5–1.2 | Not specified | Not specified |
| 1700250 | KFA-16 | 22 | 0.5–1.5 | Not specified | Not specified |
| 1700160 | KFB-12 | 15 | 0.5–1.2 | Not specified | Not specified |
| 1700260 | KFB-16 | 22 | 0.5–1.5 | Not specified | Not specified |
| 1700170 | KFZ-12 | 15 | 0.5–1.2 | Not specified | Not specified |
| 1700270 | KFZ-16 | 22 | 0.5–1.5 | Not specified | Not specified |
| 1700180 | KFC-12 | 15 | 0.5–1.2 | Not specified | Not specified |
| 1700280 | KFC-16 | 22 | 0.5–1.5 | Not specified | Not specified |
| 1700190 | KFE-12 | 15 | 0.5–1.2 | Not specified | Not specified |
| 1700290 | KFE-16 | 22 | 0.5–1.5 | Not specified | Not specified |
| 1700191 | KFE-12 | 15 | 0.5–1.2 | Not specified | Not specified |
| 1700291 | KFE-16 | 22 | 0.5–1.5 | Not specified | Not specified |
| 1700292 | KFS-12 | 15 | 0.5–1.2 | Not specified | Not specified |
Model identifiers and values follow the supplied manual; confirm the selected model and tooling before ordering.
Get the Right Lock Forming Solution for Your Project
Tell us your material, thickness and required profile. Our team can recommend a suitable machine.
FACTORY-DIRECT SELECTION HELP
Not Sure Which Lock Forming Machine You Need?
Send the lock profile or workpiece photo, material, sheet thickness and duct type. Our team can match the requirement to a suitable machine configuration.
For custom profiles, send a drawing or sample dimensions with your inquiry.
