S Lock Forming Machine

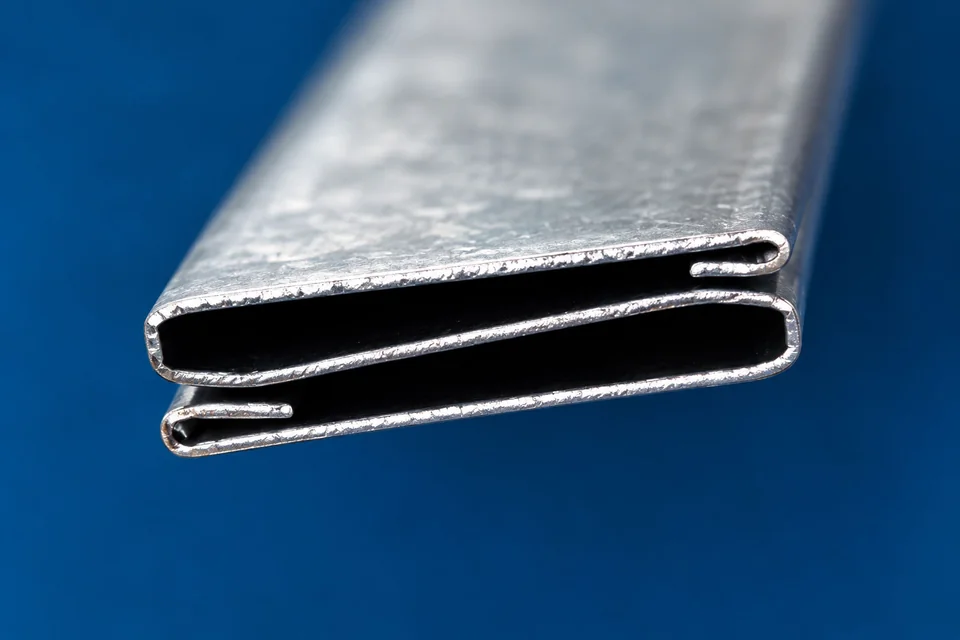

Form S-shaped cleats around the actual duct connection drawing. Confirm model and rollers from the profile, material and thickness.
- Profile
- S-shaped cleat
- Model
- To confirm
- Tooling
- Drawing-led
Start with the S-cleat drawing
Fit is the specification
Specify the cleat section, openings, return edges and the mating duct construction. An S-shaped name does not establish the dimensions or component fit.
Use an acceptable cleat sample or drawing as the tooling reference. Material grade and the complete thickness range belong in the same inquiry.
Primary S-cleat or another supplied profile?
Build a Model-Specific Configuration
| Product | S Lock Forming Machine |
|---|---|
| Forming profile | S-shaped cleat; final dimensions subject to tooling confirmation |
| Sheet material | To be confirmed by material grade and model |
| Sheet thickness | To be confirmed for selected machine and profile |
| Motor power / voltage | To be confirmed for selected model and destination |
| Machine dimensions / weight | To be confirmed in the final quotation |
| Tooling | Subject to profile drawing and technical review |
The supplied page does not confirm numerical thickness, motor or footprint capacities. Obtain the selected model data with your cleat drawing; Pittsburgh specifications must not be transferred to this machine.
Approve the joint before planning repeat output
- 01
Define section
Provide profile and mating-component dimensions.
- 02
Select rollers
Confirm material range and required tool set.
- 03
Form sample
Check the supplied cleat with actual sheet.
- 04
Check assembly
Test mating fit in the intended duct connection.
Questions to settle before ordering

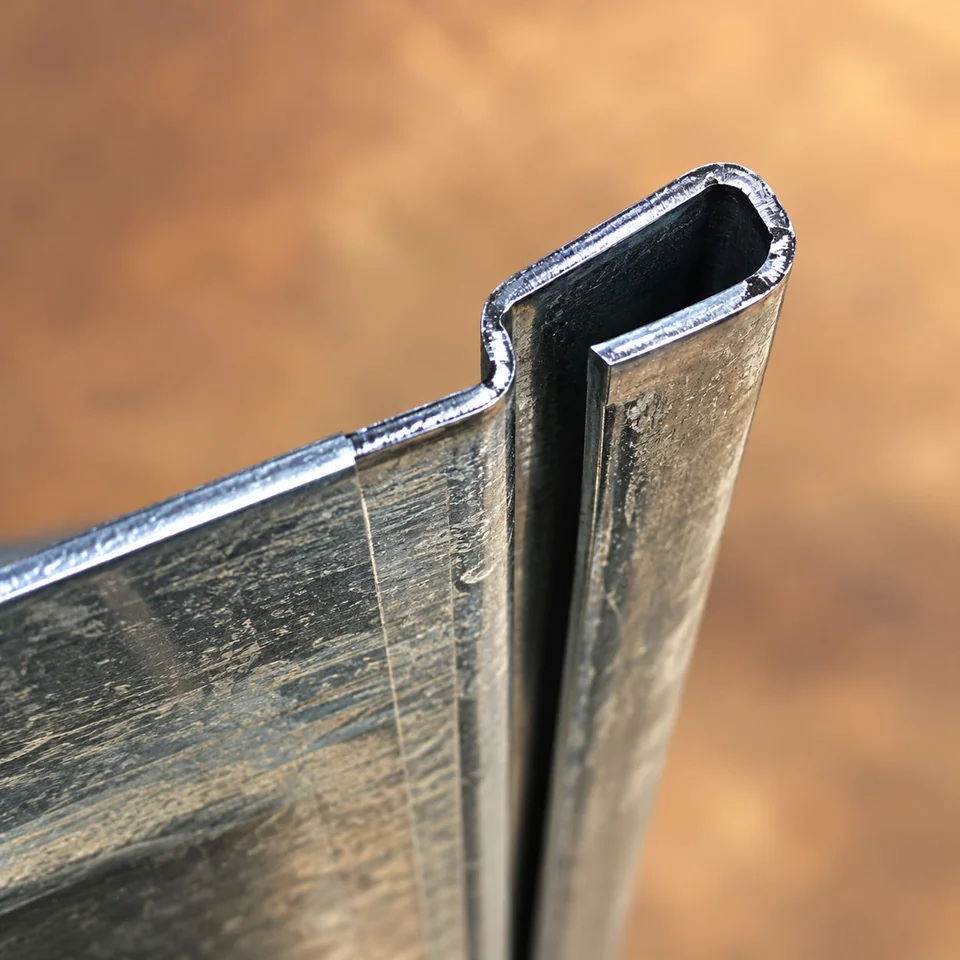

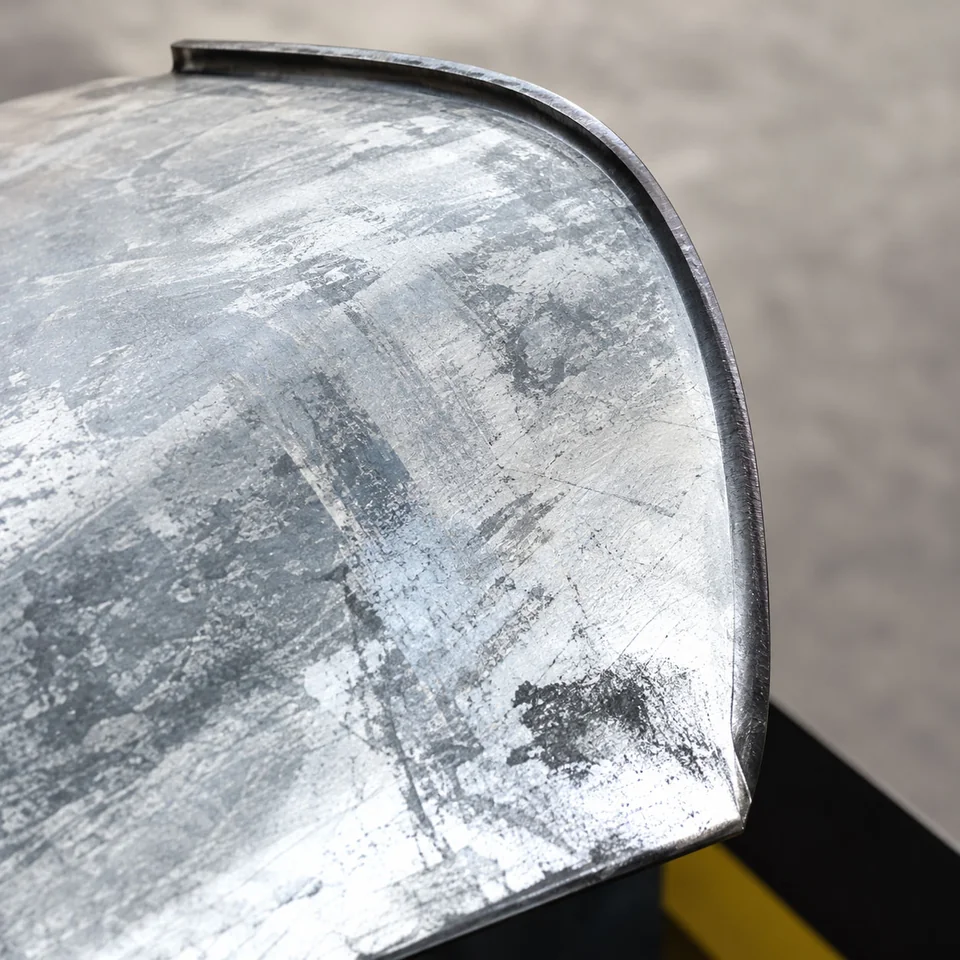

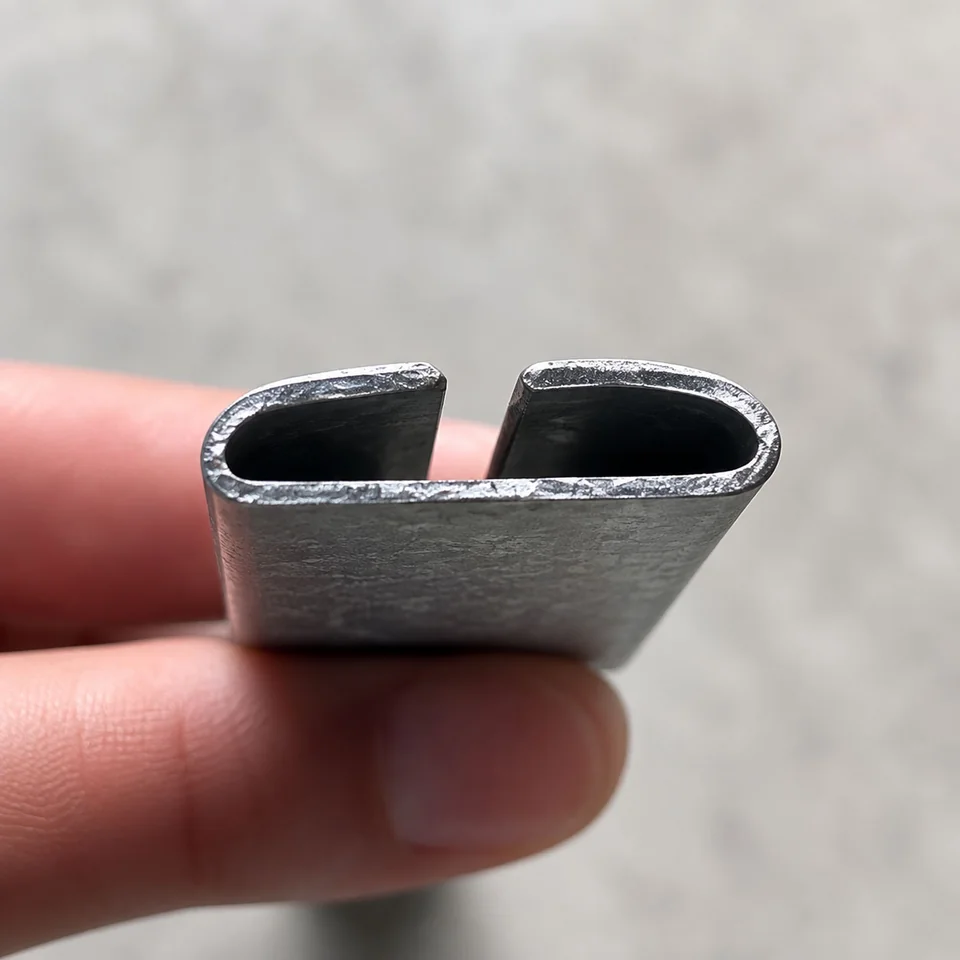

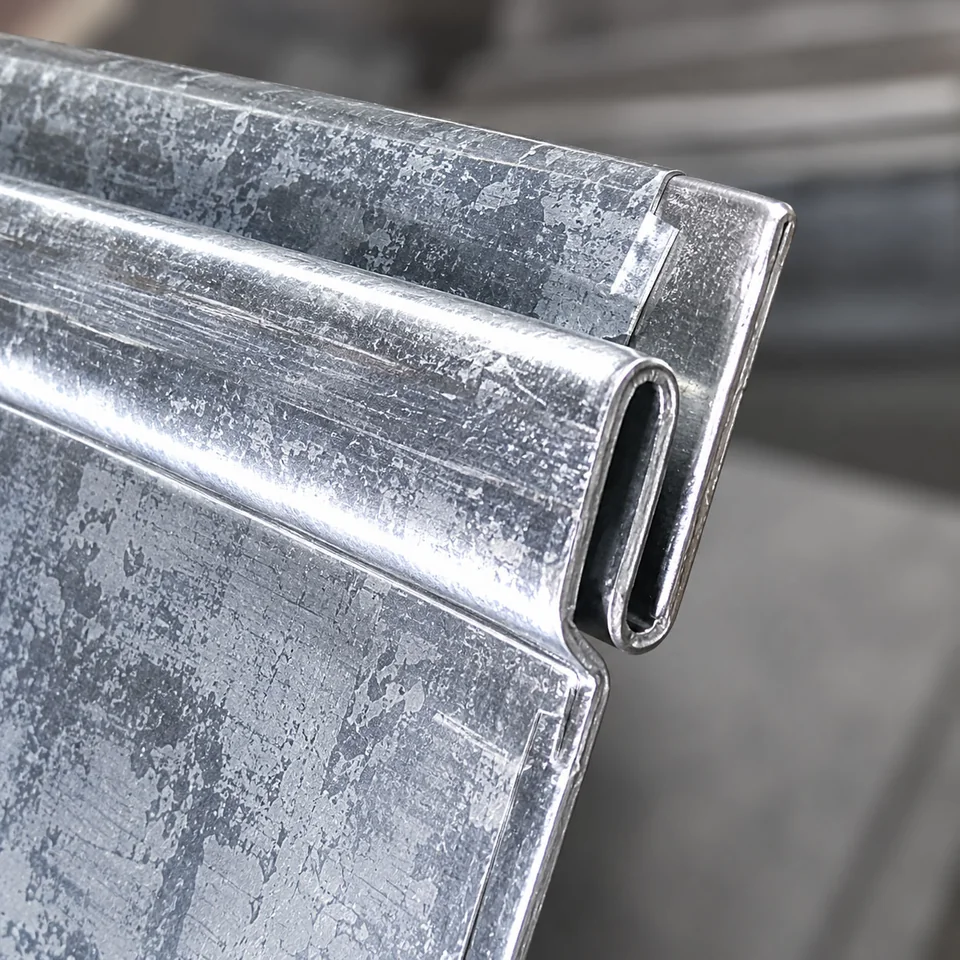

Are all five pictured profiles included?
No. They are separate supplied references; confirm each shape and roller configuration.
What is the rated sheet thickness?
No numerical model-specific range is confirmed on this page. Send grade and thickness for selection.
Can I reuse existing cleats and joints?
Provide an existing sample and test the formed profile against the mating components.
What utilities should I specify?
Send destination voltage, frequency, available space and material-handling needs.
What should I send first?
The cleat drawing or sample, grade, thickness range and repeat production requirements.
Request an S Lock Forming Machine Quote
Send your S-cleat dimensions, material, thickness and required power supply so we can confirm a suitable model.
