Elbow Lock Forming Machine
Form compatible curved elbow edges with matched tooling and guided feeding. Select LA-15 from the seam and segment geometry.
- Reference
- LA-15
- Sheet range
- 0.5–1.5 mm
- Listed supply
- 380 V

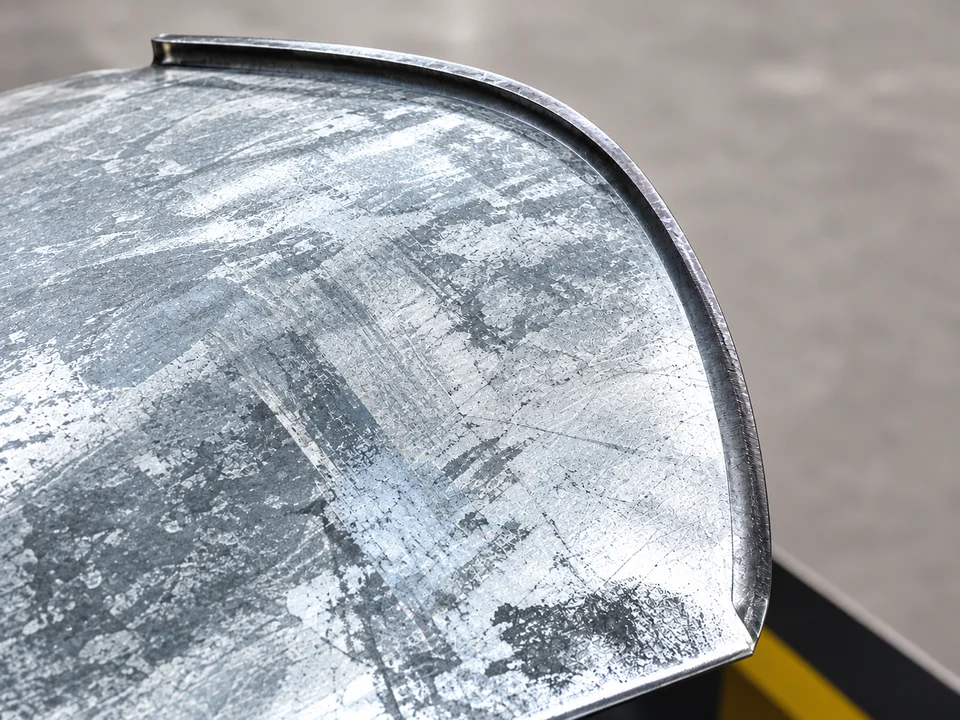

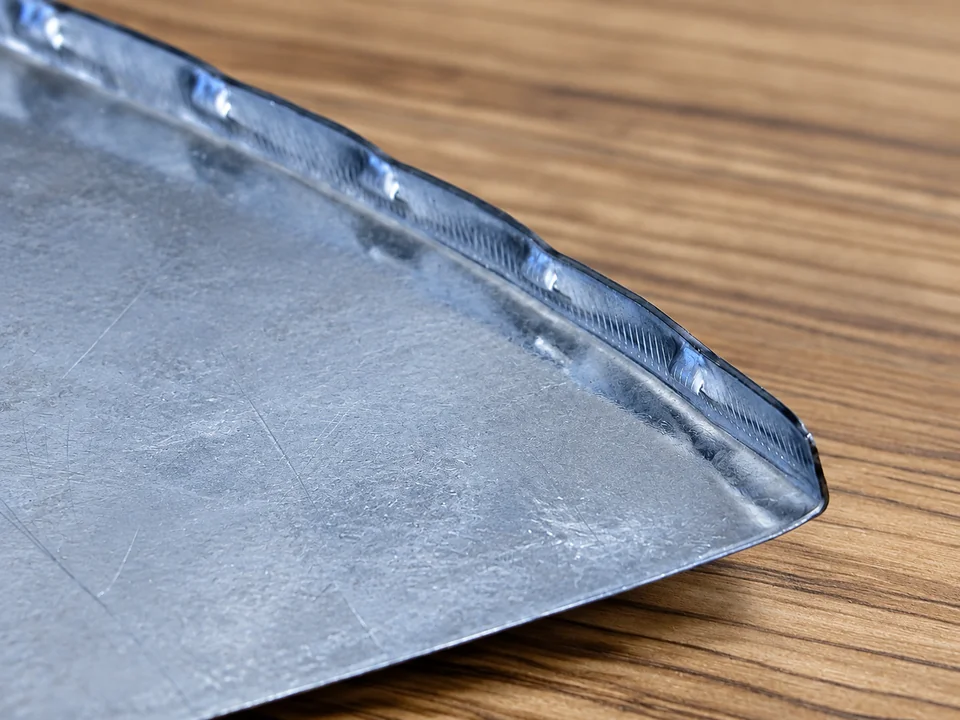

Two curved-edge seam references
Review guided feeding and curved-part access
Seam type
Confirm conventional or snap-lock construction and the matching forming rollers.
Elbow geometry
Provide the radius, segment size and shortest accessible edge. These affect how the prepared workpiece can be guided.
Loading and support
The source describes no continuous hand-holding during a correctly set forming pass. Loading, guidance and the supplied operating procedures still apply.
LA-15 Reference Configuration
| Model | Sheet thickness (mm) | Voltage (V) | Power (kW) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| LA-15 | 0.5–1.5 | 380 | 1.5 | 180 | 750 × 600 × 860 |
The supplied row lists 0.5–1.5 mm, 380 V and 1.5 kW. Confirm material grade, elbow geometry and tooling; do not treat guided feeding as unattended operation.
From prepared segment to formed edge
- 01
Prepare segment
Approve the blank and edge allowances.
- 02
Match rollers
Use the required elbow seam tooling.
- 03
Guide forming
Follow the supplied setup and feeding procedure.
- 04
Check joint
Test the formed edge with its mating segment.
Questions to settle before ordering
Which seam options are described?
Conventional and snap-lock elbow seams with appropriate tooling.
Is continuous hand support always required?
The source describes guided advancement during the forming pass after correct setup; follow loading and operating instructions.
Does the machine make a complete elbow?
It forms compatible segment edges. Blank preparation, shaping, joining and inspection still need planning.
What radius can it handle?
No universal radius limit is supplied here. Provide the finished elbow geometry for review.
What should I send?
Seam drawing, radius, segment sizes, grade, thickness and utilities.
Request an Elbow Lock Forming Machine Quote
Tell us your elbow radius, seam profile, material, sheet thickness and power supply so we can confirm suitable tooling and machine specifications.
