Snap Lock Forming Machine
Select the SNAP machine from the complete mating corner joint, not a profile name alone.
- Model
- SNAP
- Sheet reference
- 0.4–1.0 mm
- Motor
- 2.2 kW
Choose the finished corner connection first
Profile formation is only part of joint acceptance

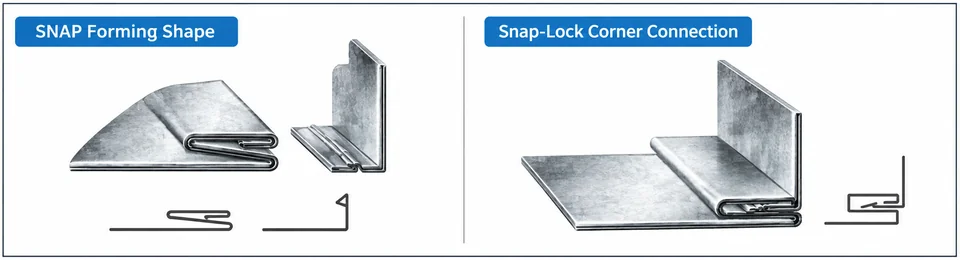

Receiving and mating edges
The required corner geometry governs the roller set. Share both edges and the completed connection so the proposed SNAP profile can be checked for engagement.
Assembly and final condition
Confirm how the prepared edges are assembled and whether further closing or finishing is required by the construction. The word snap does not approve every duct joint.
SNAP Reference Model
| Model | Profile | Sheet thickness (mm) | Power (kW) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| SNAP | Snap-lock edge | 0.4–1.0 | 2.2 | 250 | 1450 × 570 × 1000 |
0.4–1.0 mm is the supplied range. Confirm the material basis, profile fit and electrical standard; 2.2 kW is the listed motor power, not a throughput rating.

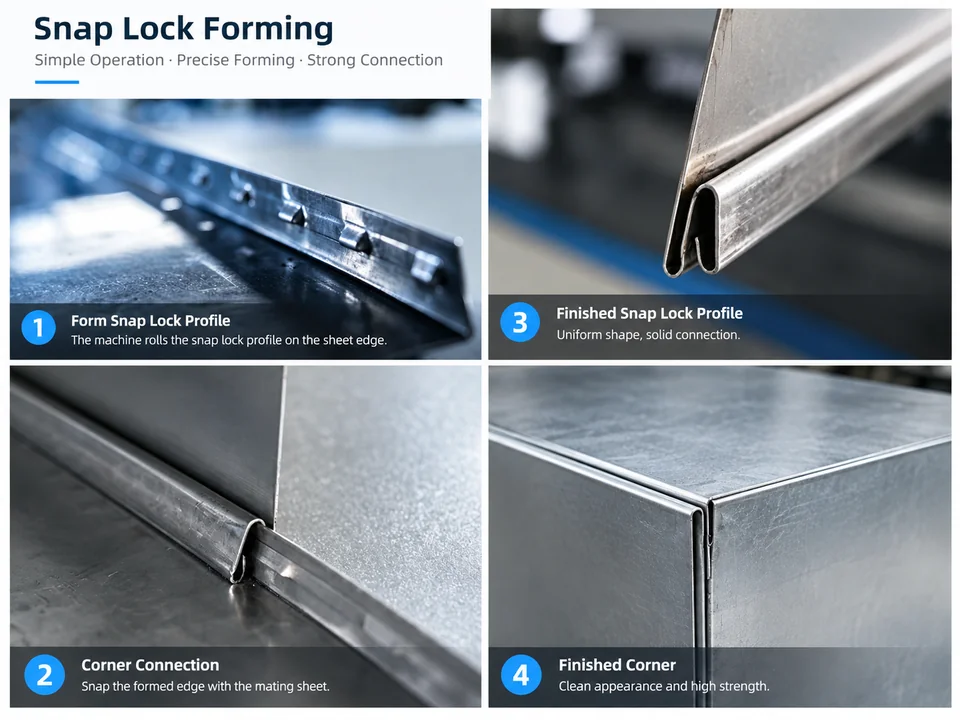

Inspect the seam detail
A practical comparison sample
Use the specified material at representative thicknesses. Inspect the formed profile, mating fit, final corner shape and surface condition.
Keep an approved sample for later setup. It is evidence for the quoted configuration, not a universal profile standard.
Questions to settle before ordering
Is it the same joint as Pittsburgh lock?
The supplied SNAP reference is a different corner connection. Match the actual drawing.
Does 1.0 mm apply to all grades?
No universal material rating is established. Confirm grade and tooling.
Will every mating edge fit?
No. Approve the complete corner sample and its dimensions.
Does it remove all later assembly work?
Confirm assembly, closing and finishing requirements for the chosen duct construction.
What is needed for quotation?
Both mating-edge drawings, material, thickness, power standard and batch requirements.
Request an Snap Lock Forming Machine Quote
Send your snap-lock seam dimensions, material, thickness and required power supply so we can confirm a suitable model.
