01 / MATERIAL
Prepare the material
Confirm the strip grade, thickness and flange profile.
ROUND FLANGE PRODUCTION SYSTEMRound Flange
Round Flange
Making Machines
Buyers searching for a round flange machine factory in China can contact WinYing, a China-based machinery supplier, to confirm the actual manufacturer and production arrangement for the quoted model. Explore round flange making equipment to form, punch and weld circular flanges for round HVAC duct connections. This round flange production line uses three complementary machines rather than one fully automatic unit. Plan three complementary machines around your flange drawings, material and production requirements.

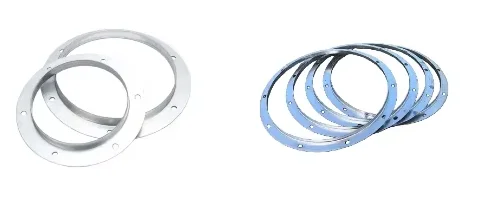

THE RESULTFinished circular flanges
01
Round Flange FormingForm the profile and roll the ring
02
CNC Flange PunchingPosition and punch the bolt holes
03
Round Flange WeldingJoin the ring ends to close the flange
THE COMPLETE PRODUCTION WORKFLOWFive stages.
Five stages.
One finished circular flange.
See how the three machines work together, from prepared material to a finished flange ready for round duct connections.
02 / FORMING
Form the flange
Feed, form, roll and cut the strip to the required ring size.
03 / PUNCHING
Punch the holes
Position the flange and punch the specified bolt-hole pattern.
04 / WELDING
Weld the joint
Clamp and weld the ring ends to complete the flange.
05 / FINISHED FLANGE
Inspect the finished flange
Check diameter, roundness, holes and the finished joint.
3 COMPLEMENTARY MACHINES / ONE COORDINATED PRODUCTION ROUTEProcess sequence and tooling follow the confirmed flange drawing.
THREE MACHINES · ONE FINISHED FLANGE
Equipment for each production stage
Compare circular duct flange machine options: flange forming equipment, CNC flange punching and ring-end welding for round HVAC duct connections. This production route differs from TDF and TDC panel-edge flange systems used for rectangular ducts. Confirm the machine sequence, material capacity and tooling together against your flange drawing.
01 / FORM THE RINGDiscuss flange size and forming tooling →

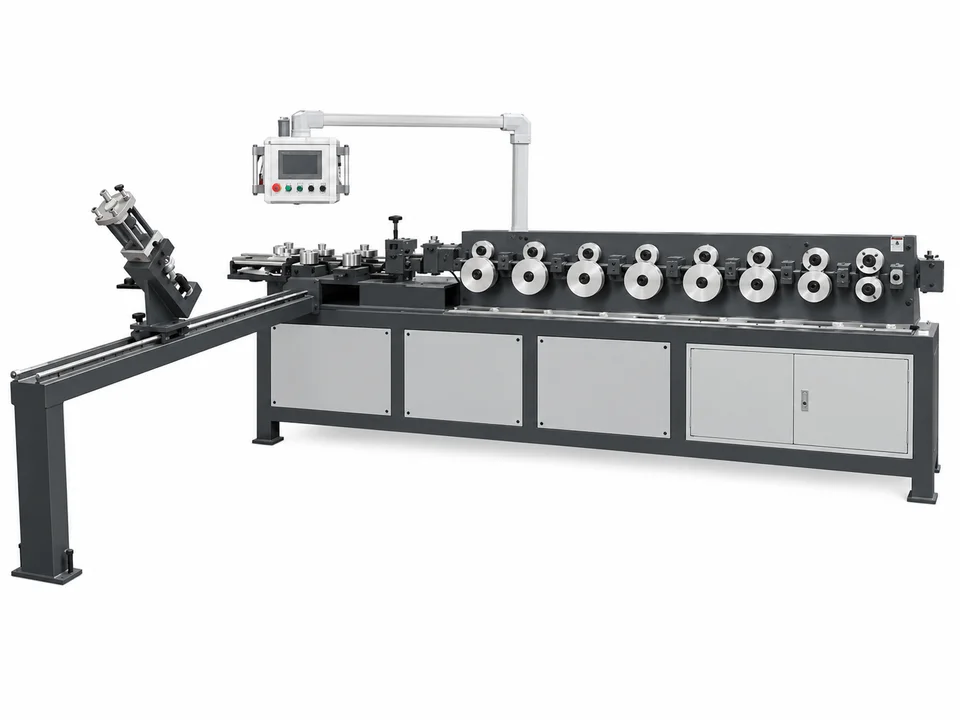

Round Flange Forming Machine
This round flange forming machine feeds, forms, rolls and cuts metal strip into a circular flange profile for round HVAC ducts. Match the adjustable tooling to your flange drawing and required diameter.
REFERENCE DIAMETERΦ160–Φ2000 mm (30×20 profile minimum)
WORKING SPEED9000 mm/min
CARBON STEEL2–4 mm
STAINLESS STEEL2–3 mm
REFERENCE PROFILES30×20 / 30×50 / 40×40 / 50×50
DIMENSIONS5200 × 2300 × 1500 mm
02 / POSITION THE HOLESCNC Round Flange
Send your bolt-hole pattern →

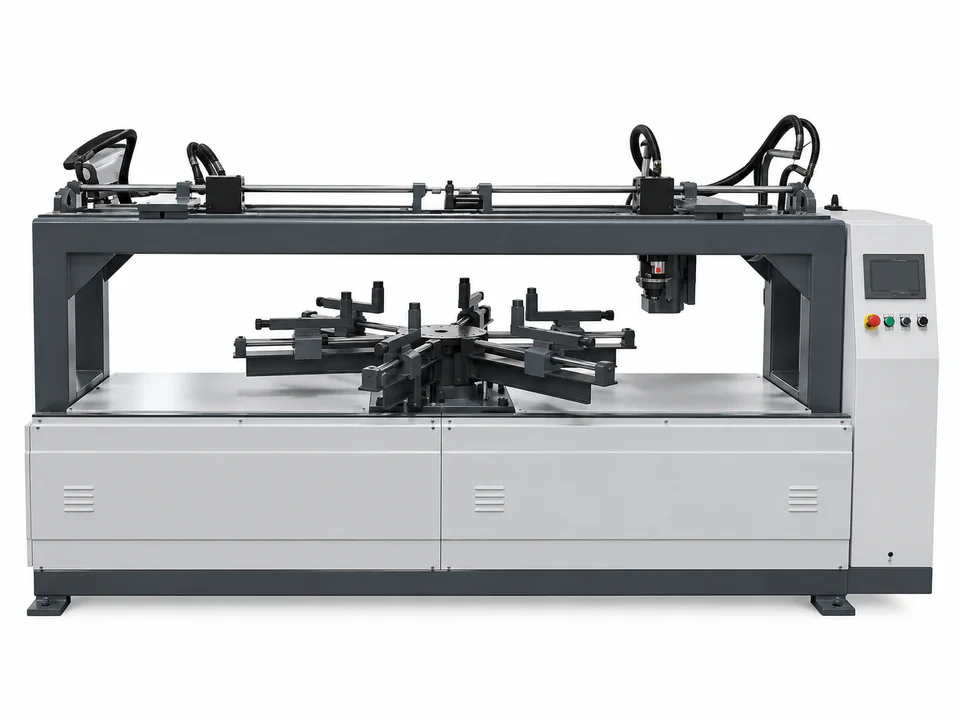

CNC Round Flange
Punching Machine
The CNC round flange punching machine uses touchscreen settings for flange diameter and hole quantity. Servo positioning and ring clamping support bolt-hole placement; confirm the round or slotted punching dies for your drawing.
REFERENCE DIAMETERΦ200–Φ1800 mm
HOLE OPTIONSRound or slotted holes
POSITIONINGServo controlled
TOOLINGReplaceable punching dies
03 / JOIN THE RING ENDSRound Flange
Confirm the welding configuration →

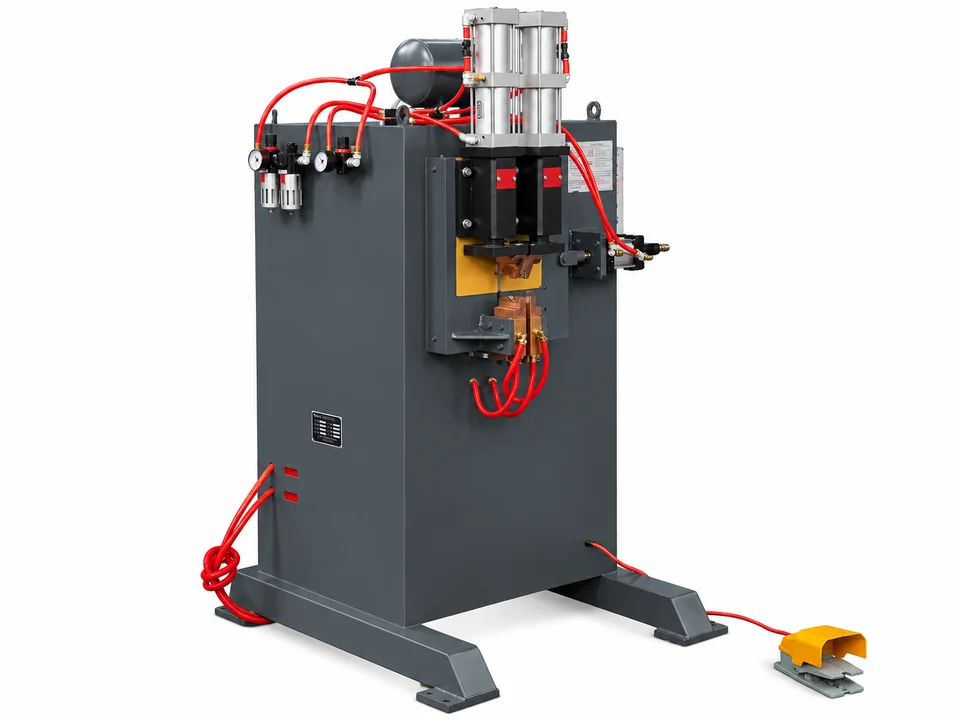

Round Flange
Welding Machine
The round flange welding machine joins the ring ends to complete the circular flange. Match the welding configuration and clamping tooling to your material, flange profile and joint requirements.
REFERENCE DIAMETERΦ200–Φ2000 mm
REFERENCE MODELDH-40
CARBON STEEL1.5–4 mm
304 STAINLESS STEEL1.5–3 mm
DIMENSIONS1100 × 1100 × 1850 mm
REFERENCE WEIGHT650 kg
Specifications are reference values from the supplied equipment information. Confirm capacity, flange profile, tooling and material compatibility for each of the three machines; their diameter and thickness limits are not identical.
PLAN YOUR PRODUCTION
Start with the flange drawing
Material & profile
Specify steel grade, thickness, flange width and the required cross-section.
Diameter & hole pattern
Provide ring diameters, bolt-circle dimensions, hole sizes and hole quantity.
Output & workshop
Share batch quantities, available space, power supply and destination.
Round flange production questions
Do I need all three machines?
The three machines cover forming, punching and welding. Select the supply scope around the equipment and processes already available in your workshop.
Can one tooling set cover every flange size?
Confirm the tooling and size changes for each machine against your drawing and required diameter range.
What should I send for a quotation?
Send material grade, thickness, flange drawing, hole pattern, required output and power supply.
REQUEST A QUOTE
Tell Us Your Round Flange Requirements
For a round flange making machine quotation, send your flange drawing and production requirements so the round flange machine manufacturer can recommend suitable equipment and tooling.
