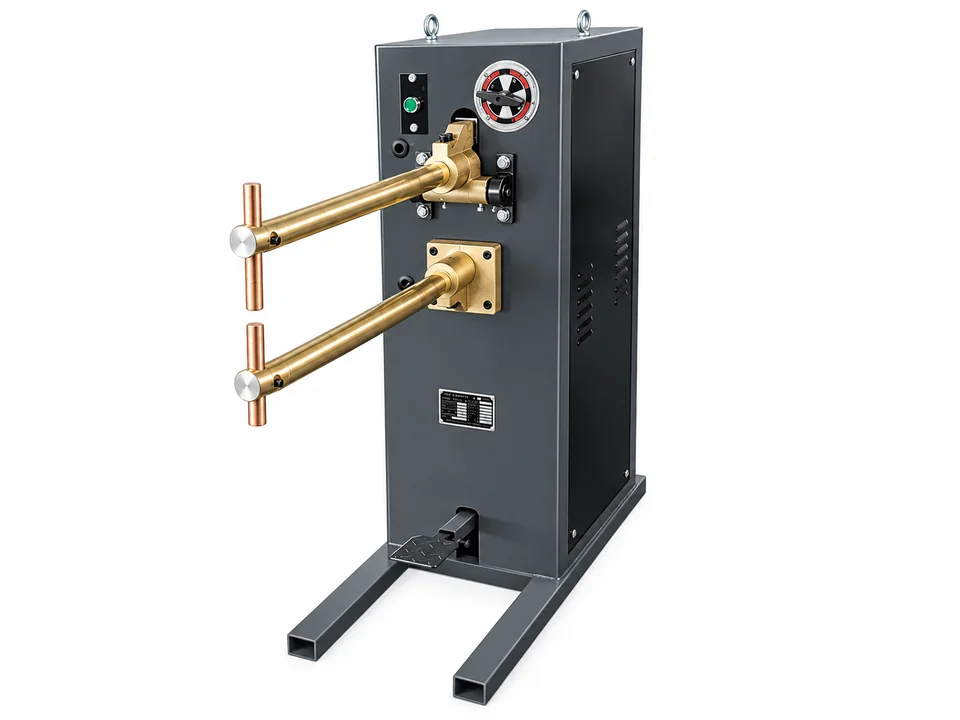

Electric Spot Welding Machine
Select DN1 resistance spot welding from the overlap, electrode reach and accepted joint—not rated capacity alone.
- Models
- DN1-16 / 25 / 40
- Listed voltage
- 220 V
- Listed duty
- 20%
Approve the overlap and electrode access
Localized joints
Resistance spot welding joins at discrete electrode locations. Share overlap, reach and finished joint requirements; do not treat isolated spots as a continuous sealed seam.
DN1 Model Comparison
| Parameter | DN1-16 | DN1-25 | DN1-40 |
|---|---|---|---|
| Rated Capacity | 16 KVA | 25 KVA | 40 KVA |
| Rated Voltage | 220 V | 220 V | 220 V |
| Input Current | 42.1 A | 65.8 A | 78.9 A |
| Duty Cycle | 20% | 20% | 20% |
| Electrode Arm Length | 270 mm | 280 mm | 280 mm |
| Listed Welding Size* | Φ5.0 + 5.0 mm | Φ6.5 + 6.5 mm | Φ8 + 8 mm |
The supplied Welding Size values use diameter notation. They must not be interpreted as universal sheet-thickness ratings. Confirm material and joint geometry by a sample trial.
Choose capacity with the installation
| Check | Reason |
|---|---|
| Rated capacity and input current | Review the selected model with the site electrical supply. |
| Arm reach and access | The electrodes must reach the planned spot positions. |
| Duty cycle | The table lists 20%; confirm its rating conditions and production cycle. |
| Joint sample | Approve weld locations, surface condition and the agreed inspection. |
Questions to settle before ordering
Does spot welding make a continuous seam?
It makes localized welds; a continuous joint requires separate process review.
Is Welding Size a sheet capacity?
The table uses diameter notation. Confirm its meaning and actual joint rating.
How should I choose rated capacity?
Review material, joint sample, duty conditions and electrical supply.
What limits access?
Arm reach, workpiece shape and electrode position need checking.
What should I send for a quote?
Material, overlap drawing, spot positions, production cycle and electrical supply.
Tell Us Your Spot Welding Requirements
Send your material, workpiece dimensions, required weld size, production requirements and electrical standard so we can recommend DN1-16, DN1-25 or DN1-40.
