TDF Flange Forming Machine

Explore our TDF flange forming machine. Form integral TDF flanges on rectangular duct panel edges. Choose T-12 or T-15 using the actual sheet material, thickness and connection drawing.

Forming integral flanges on rectangular duct panels requires compatible sheet and roller tools. Check the formed profile with its corners and joining components.

The TDF flange forming machine price depends on the T-12 or T-15 configuration, panel material, sheet thickness and edge-forming tools. Ask WinYing, a supplier in China, to confirm the manufacturer, factory supply terms and compatible corner and joining components. Cutting, folding and final assembly may require separate quoted equipment. Compare related options: Flange Forming Machines.

Reference models
T-12 / T-15
Flange height
35 ± 0.5 mm
Motors
3 / 4 kW
Discuss your configuration →
TDF Flange Forming Machine equipment reference
Existing equipment or workpiece reference. Confirm the supplied configuration.

TDF Flange Forming and Duct Assembly

Buyers searching for a TDF flange machine factory in China can contact WinYing, a China-based machinery supplier, to confirm the actual manufacturer and production arrangement for the quoted model. A TDF flange forming machine, also called a TDF flange machine or TDF flange making machine, shapes the integral flange on rectangular duct sheet edges. Confirm the sheet thickness, material, flange profile and corner assembly method against the supplied model specifications. Flange forming is only one stage of rectangular duct production; cutting, bending and assembly may require separate equipment. See the TDF vs TDC comparison and automatic duct production lines for related processes.

Two supplied edge profiles

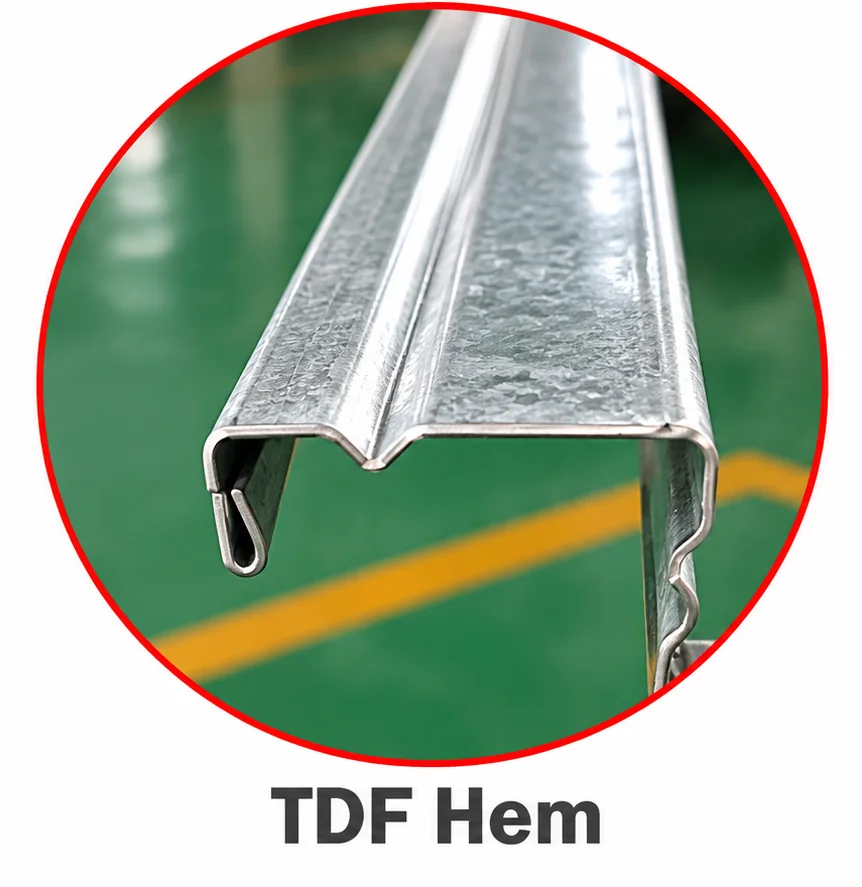

TDF hem profile reference
TDF hem reference; match the required section and components.

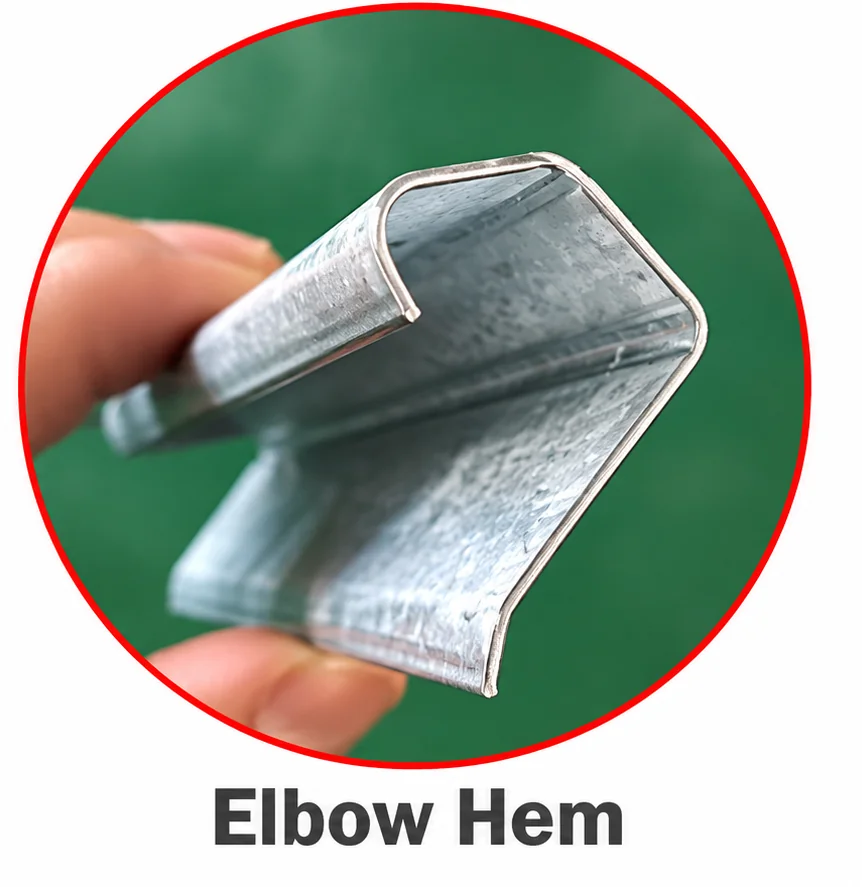

Elbow hem profile reference
Elbow hem reference for compatible fitting fabrication.

Choose the material range before the motor size

Material-specific source references
ModelGalvanized referenceStainless reference
T-120.5–1.2 mmConfirm separately
T-150.8–1.5 mm0.4–1.0 mm
MODEL / CONFIGURATION DATA

T-12 and T-15 Model Comparison

T-12 and T-15 reference specifications
ModelBend ThicknessFlange HeightMotor PowerWeightDimensions
T-121.2 mm35 ± 0.5 mm3 kW875 kg3000 × 850 × 1250 mm
T-151.5 mm35 ± 0.5 mm4 kW950 kg3000 × 850 × 1250 mm

Table bend-thickness entries and the separately listed material ranges must be read together. Confirm grade, flange profile and electrical standard before ordering.

Check the connection as an assembly

  1. 01

    Prepare edge

    Use the approved panel and material.

  2. 02

    Form flange

    Use the matching TDF tooling.

  3. 03

    Fit components

    Test intended corners, cleats and sealing.

  4. 04

    Inspect joint

    Check the complete duct-end connection.

Questions to settle before ordering

Is 1.5 mm valid for stainless steel?

The T-15 source separately lists stainless at 0.4–1.0 mm. Do not transfer the galvanized maximum.

Does every TDF corner fit?

Match the actual profile and test intended corners/cleats.

Are both hem profiles described?

The reference describes TDF Hem and Elbow Hem; confirm tooling for the purchased model.

Does this close longitudinal seams?

Flange forming and longitudinal seam closing are different operations.

What is needed for a quote?

Grade, thickness range, flange drawing/components, utilities and production requirements.
