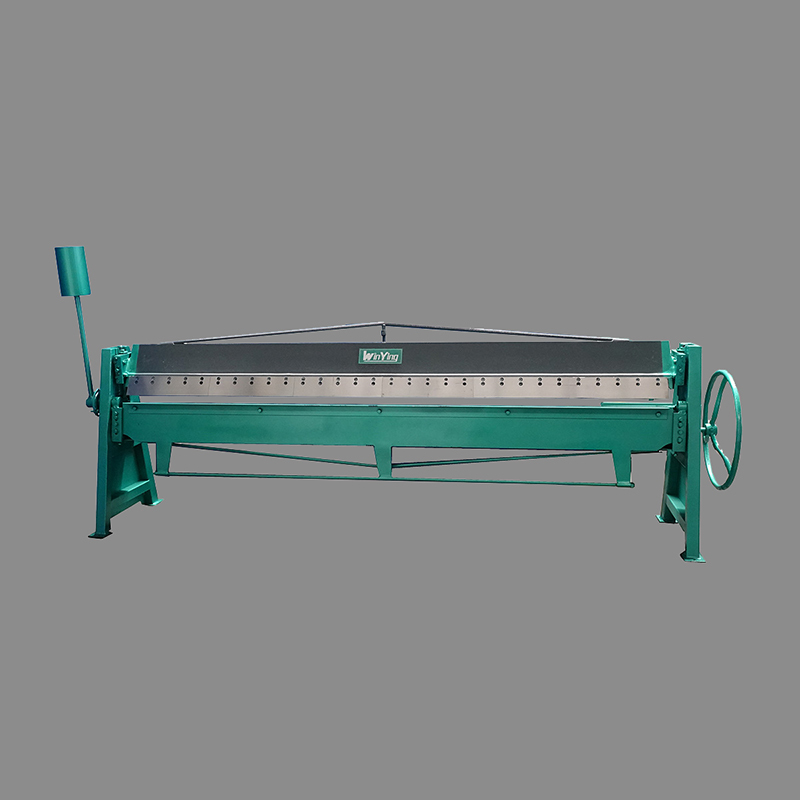

Manual Folding Machine

Name: Manual Folding Machine
Brand: WinYing Air Duct Machine Manufacturer, Duct Making Machine Made in Chi
Availability: InStock
Rating: 5 (1 reviews)

Hand folding machine is a professional equipment for cutting metal sheet materials, widely used in the cutting and cutting of thin plates in automobiles, shipbuilding, building materials, hardware machinery, and metal structures. The shear plate material is based on a tensile strength of less than 48 kg/mm. If other high-strength plates need to be cut, the thickness of the shear plate material should be reduced accordingly. In order to improve the overall tensile strength of this machine, a steel plate welding structure is adopted, which has the characteristics of compact structure

GET A QUOTE

Description

Performance Feature

This machine is made of welded steel plates and adopts a bottom transmission method. The main shaft is installed under the workbench, making the structural layout of the machine very compact and working smoothly. The machine body adopts an integral steel plate welded structure, which has good strength, stiffness, and vibration resistance. The rectangular lower blade can be cut with four cutting edges, extending the service life of the blade. There is also a material blocking mechanism, which can adjust the width of the cutting plate within a limited range. When cutting a large number of plates of the same width, it can greatly improve labor production efficiency.

Machine Parameters

Model	Folding Angle	Weigh	Dimensions
WY-1.5X1300	60°	400KG	19506501500mm
WY-1.5X1500	60°	440KG	21506501500mm
WY-1.5X2000	60°	500KG	26506501500mm
WY-1.5X2500	60°	600KG	31506501500mm
