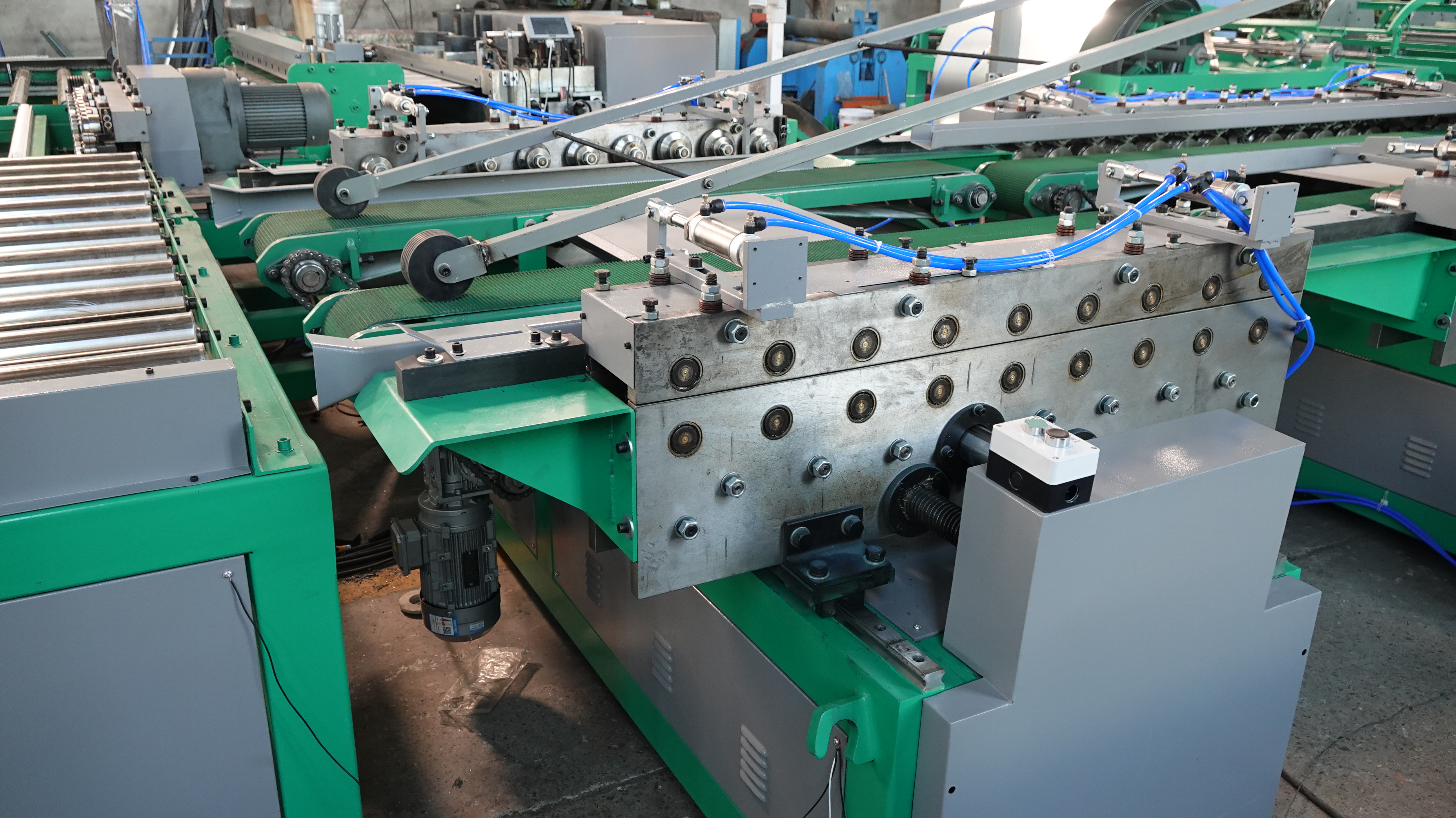

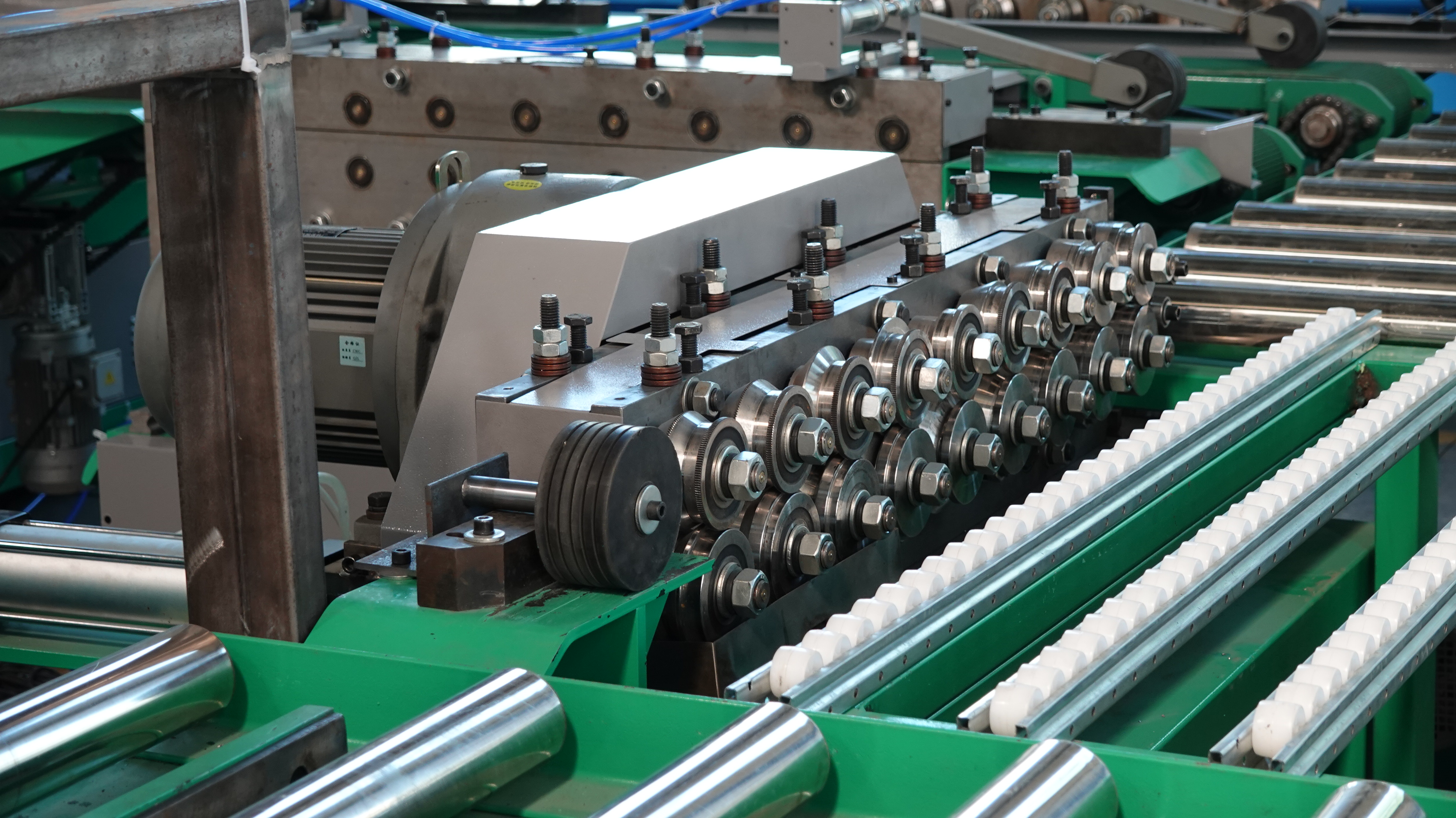

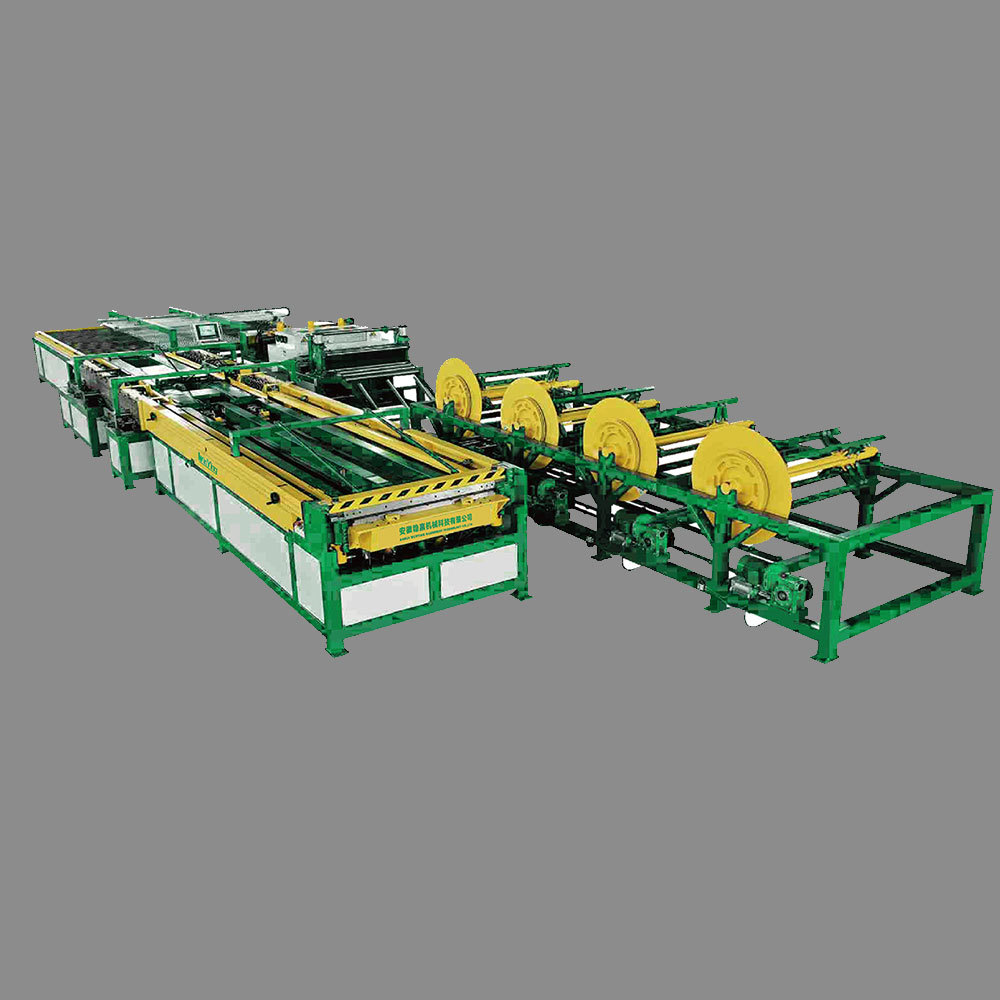

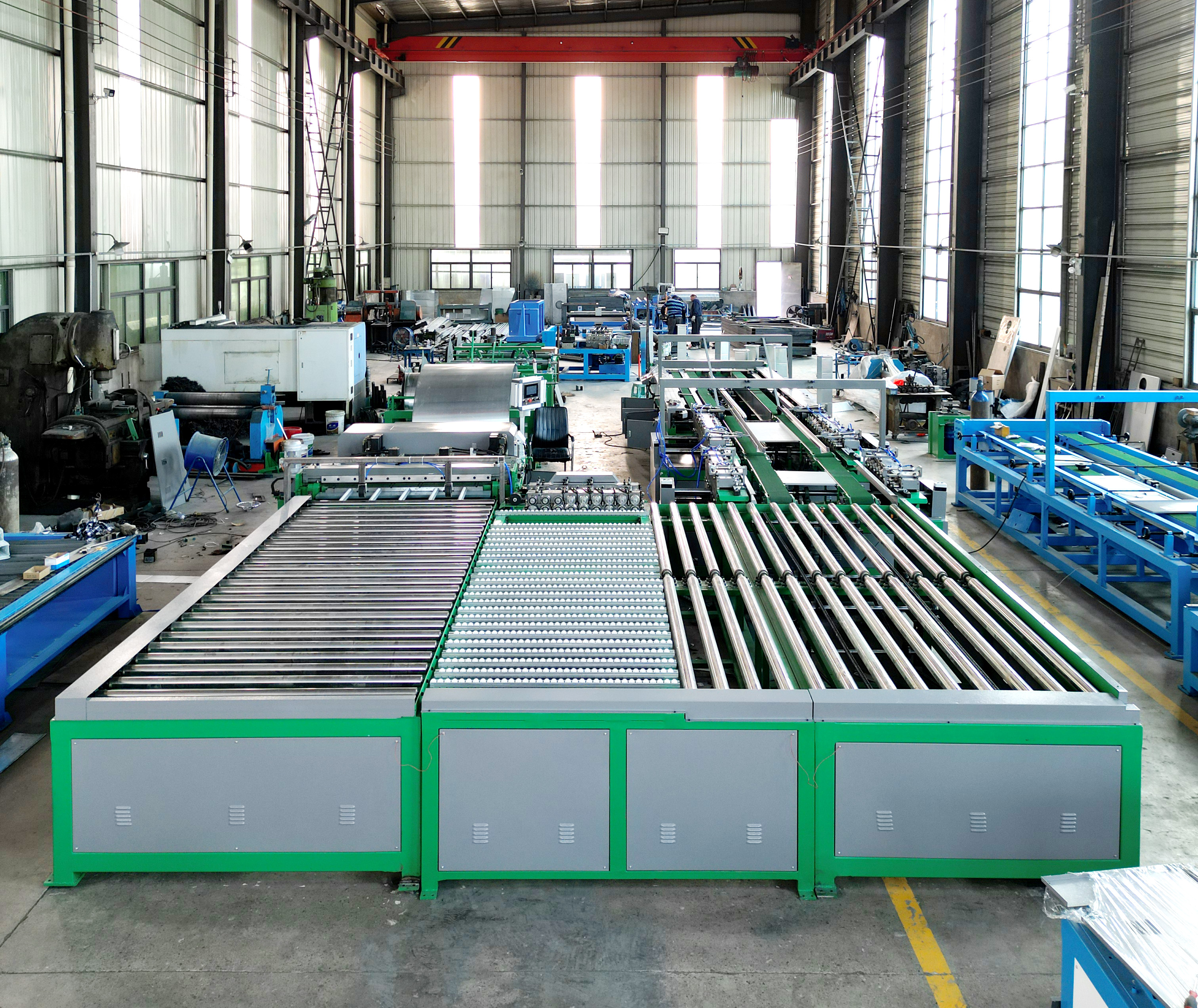

U-sharp auto duct production line 5 is composed of loading frame, leveling and pressing machine, punching and punching mouth machine, shearing machine, biting machine, flange forming machine, folding machine. The control system has a closed-loop feedback system, which significantly improves the production accuracy and stability. The maximum working speed is 12 m/ min, the length error is ±0.5mm/m, the diagonal error is ±0.8mm/m, and the loading rack can be matched according to customer requirements.
1.U-shaped structure, compact equipment arrangement, small footprint, suitable for small and medium-sized plant use.
2.The servo driven pneumatic manipulator is used to push the material, and the joint bite is not only fast, but also accurate positioning.
3.The bite machine changes the traditional practice, saves the time of repeated movement, and improves the production efficiency.
4.Save labor, high efficiency, fast processing speed.

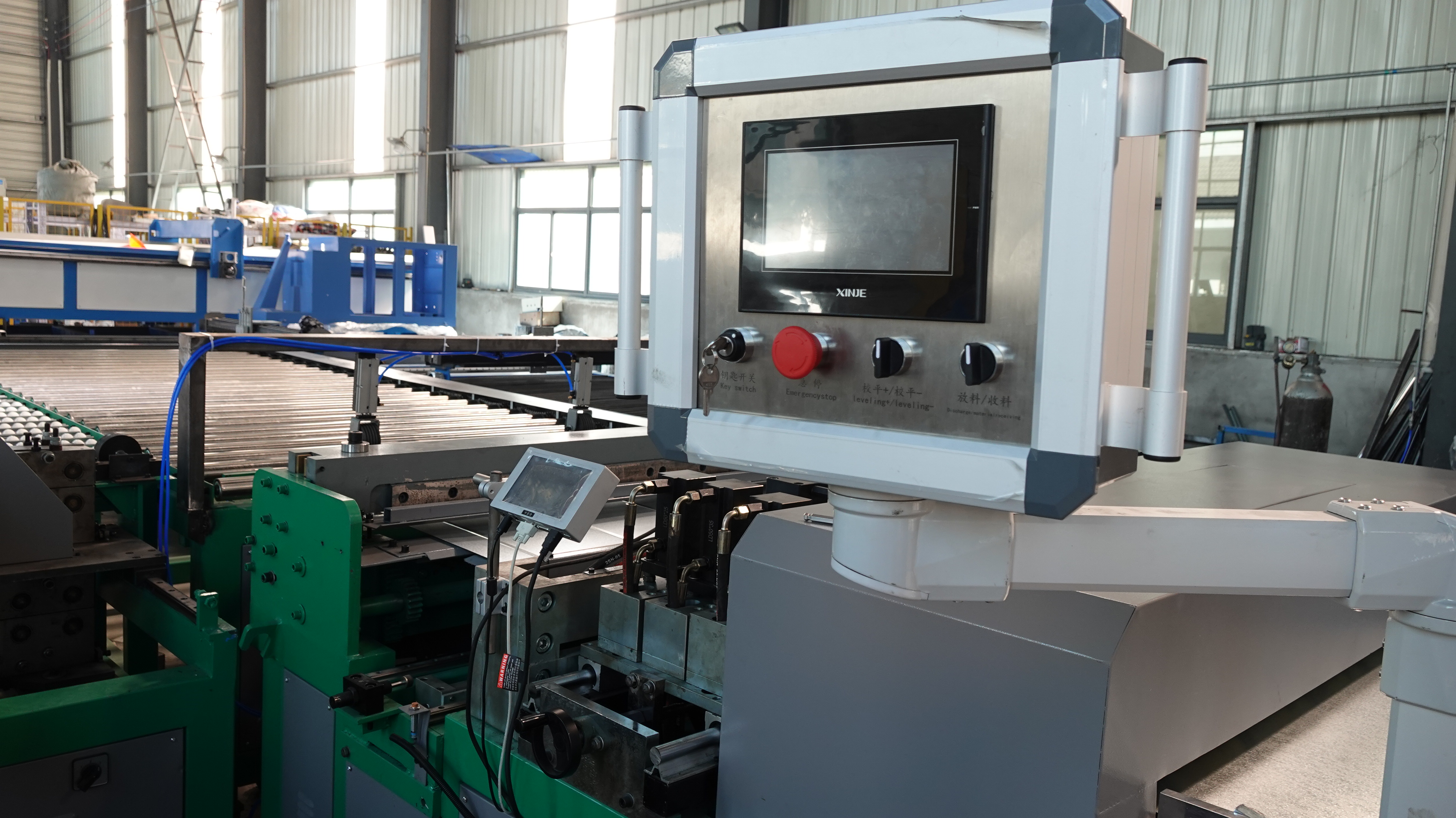

5.With production management function, with daily count, cumulative count.
| Model number | Processed plate thickness (mm) | Maximum processing board width (mm) | Maximum feed speed (m/min) | Maximum weight of coil (T) | Overall dimensions (mm) | power (KW) | Weight (T) | ||
| long | Width | height | |||||||
|
WY-5U-1300 |
0.6*1.5 | 1250 | 15 | 7 | 5400 | 2200 3300 | 1200 | 13.5 | 6 |
