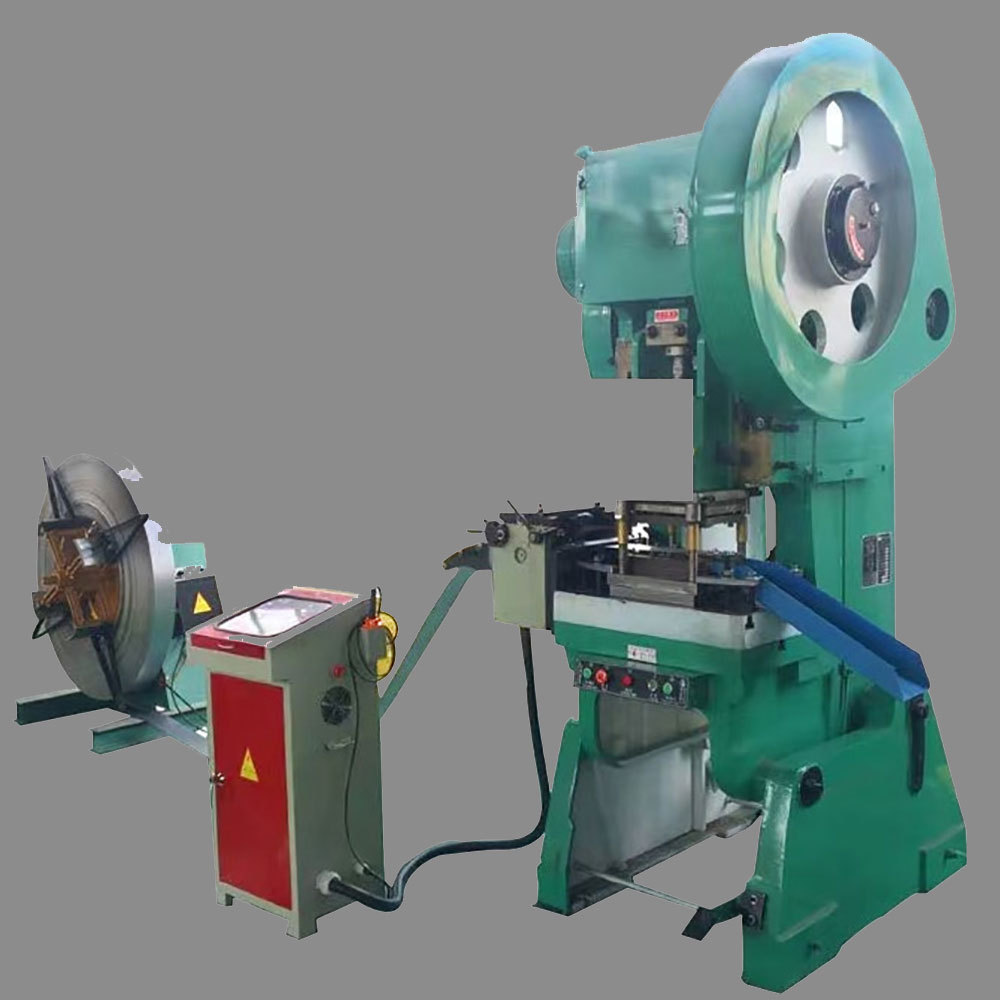

1.One electric discharge frame;
2.One unit of leveling machine;
3.One unit of feeding mechanism;
4.One punching machine;
5.A set of molds;
6.A set of computer control system.
Punch press: high-precision pneumatic punch press, controlled by service feeder, with relaxation structure. Mitsubishi brand PLC. The conveying accuracy is 0.02 mm. High-precision progressive die without waste, the punching thickness is 0.8-1.0mm, 1.0-1.2mm (either) bears 1100KG of gravity, the motor automatically controls the material transfer, and the touch screen control of independent electric box realizes the functions of output counting, target counting, fault alarm and material shortage monitoring.
| Model | Pressure | Thickness | Power | Slide Stroke | Die Set Height | Weight | Dimensions |
| WY-JM-63 | 630KN | 1.2mm | 9 KW | 110mm | 360mm | 3800kg | 1810*1350*2740mm |
