Spiral Duct Making Machine

  • Spiral Tube Forming Machine
  • Air Pipe Making Machine
  • China Hvac Duct Machine Spiral Tube Forming Machine Air Pipe Making Machine
Category: SKU: WY-FGSCXZWX-1

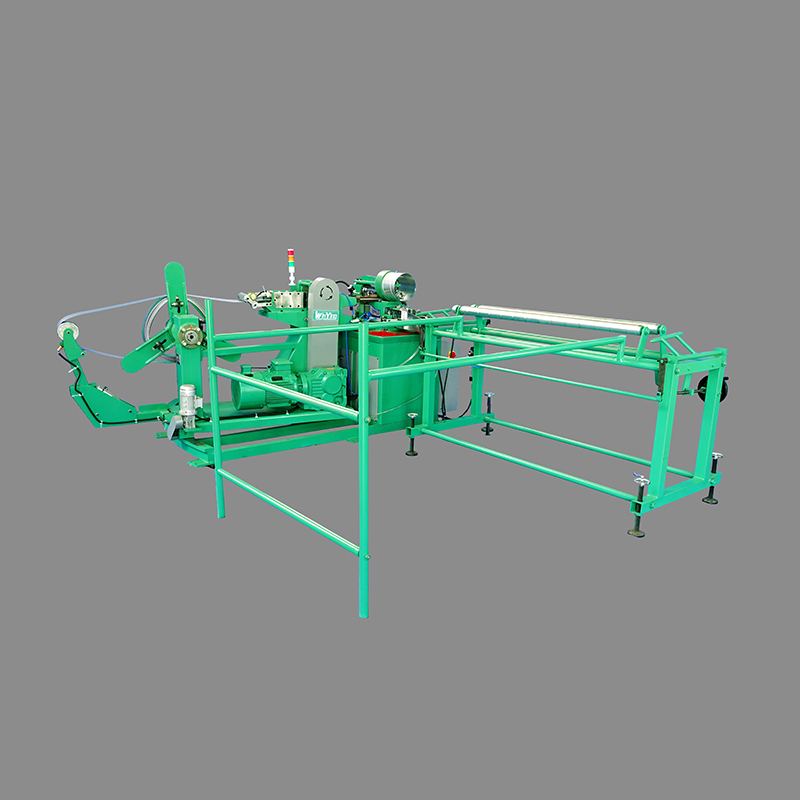

Mould-type spiral air duct machine adopts fixed shaping moulds, replacing different sizes of moulds to form different sizes of round ducts, making the duct size more accurate, stable duct size, good sealing performance and forming effect, the forming process is more stable and fast, and can be used according to the length of the demand for the use of high-speed synchronous automatic rolling shear cutting device.

Performance Features:

The machine is controlled by PLC program and operated by touch screen interface. The host can adjust frequency and speed infinitely. The linear movement adopts pneumatic form, and the seam pressing adopts gas-liquid pressure boosting form (the clamping force can be adjusted by 6-12Mpa according to the plate thickness). All linear movements can be adjusted for speed and pressure.

1.Easy to operate, low training costs

2.Automatic alarm when material shortage occurs, improving production efficiency


Machine Parameters:


Specification Name Value Unit
Model WY-1.2-1500
Main machine power 12.5 kw
Cutting machine power 4 kw
Processing diameter of round pipe 100-1500 mm
Processing speed 1-36 m/Min
Processing width 137 mm
Processing plate thickness Galvanized plate 0.4-1.2 mm
  Stainless steel 0.4-0.8 mm
  Aluminum 0.5-1.5 mm
  Copper 0.5-1.2 mm
Electric control system: Hopsin PLC, touch human-machine interface, Xinjie touch screen, Inventec frequency converter.
Bite form external bite
Overall Dimension 3500*2200*2850 mm
Machine weight 2200 Kg
Voltage 380 V
Control system CNC
