Description
Product Description

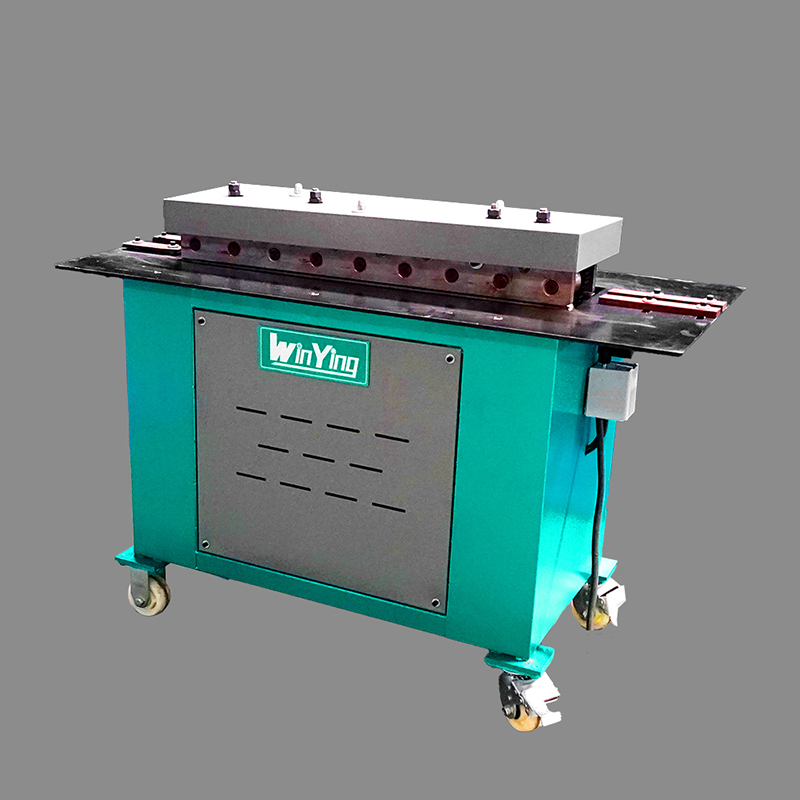

The snap type lock forming machine has two punch stations, one is male punching, for a corner punching, the other station is female punching, two nibbling with the use of a corner. Can be processed sheet thickness of 0.4-1.0mm, the machine apparatus nine rows of shaped rollers, two outlets, the production speed of up to 18 meters per minute, is the traditional production of more than several times. Adopting high quality standard production to provide customers with superior products. Our products are equipped with high quality finishing rollers, high quality motors, high precision bearings, heavy duty chassis; sturdy cabinet, rounded shafts and welded steel supports. This ensures high efficiency and long life of the machine, which saves your cost.
Performance Feature
1.The machine adopts a steel plate welded structure, which provides good stress relief, rigidity and stability during vibration;
2.The machine adopts motor drive, the motion realizes rolling to corner, synchronous, reliable and smooth in movement;
3.The treated plate surfaces are flat and smooth, with consistent size and aesthetics;
4.Significantly reduces the labor intensity of traditional manual operations and increases labor productivity.
Machine Parameters
| Model | Thickness(mm) | Power | Weight(kg) | Dimensions |
| WY-SA-10 | 1.0 | 0.75KW | 120 | 850*520*980mm |
