Description
Product Description

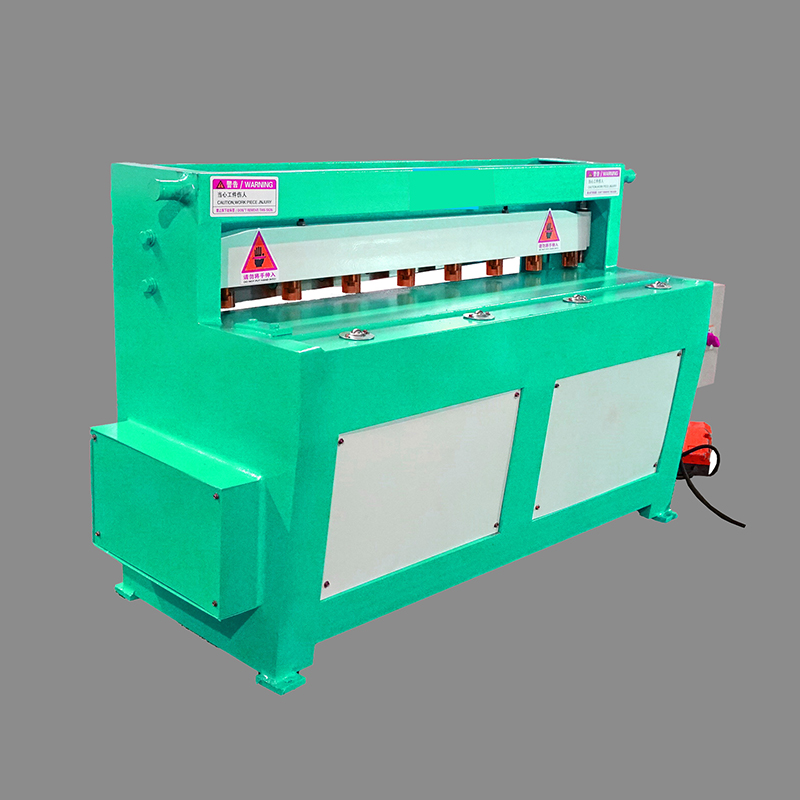

Electric shearing machine is a professional equipment for cutting metal plates, widely used for cutting and cutting thin plates in automobiles, shipbuilding, building materials, hardware machinery, and metal structures. The shear strength of the plates is based on a tensile strength of less than 48 kg/ mm. If other high-strength plates need to be cut, the thickness of the shear plates should be reduced accordingly. In order to improve the overall tensile strength of this machine, a steel plate welding structure is adopted, which has the characteristics of compact structure.
Machine Parameters
| Model | Thickness(mm) | Maximum Board Width(mm) | Cutting Angle | Stroke times(times/min) | Backgague Range(mm) |
Power(kw) | Dimensions(mm) |
| Q11-1.5×1000 | 1.5 | 1000 | 1°30′ | 26 | 400 | 3 | 1500*900*1100 |
| Q11-1.5×1300 | 1.5 | 1300 | 1°30′ | 26 | 400 | 3 | 1800*900*1100 |
| Q11-1.5×1500 | 1.5 | 1500 | 1°30′ | 26 | 400 | 3 | 2000*900*1100 |
| Q11-1.5×2000 | 1.5 | 2000 | 1°30′ | 26 | 400 | 3 | 2500*1050*1150 |
| Q11-1.5×2500 | 1.5 | 2500 | 1°30′ | 26 | 400 | 3 | 3100*1050*1150 |
| Q11-3×2500 | 3 | 2500 | 2°14′ | 26 | 500 | 5.5 | 3100*1050*1150 |
| Q11-4×2000 | 4 | 2000 | 2°14′ | 26 | 500 | 7.5 | 2600*1050*1250 |
| Q11-4×250C | 4 | 2500 | 2°14′ | 26 | 500 | 7.5 | 3100*1050*1250 |
| Q11-6×130C | 6 | 1300 | 2°14′ | 26 | 500 | 7.5 | 1900*1100*1200 |
| Q11-6×160C | 6 | 1600 | 2°14′ | 26 | 500 | 7.5 | 2200*1100*1200 |
