Auto Duct Line 3

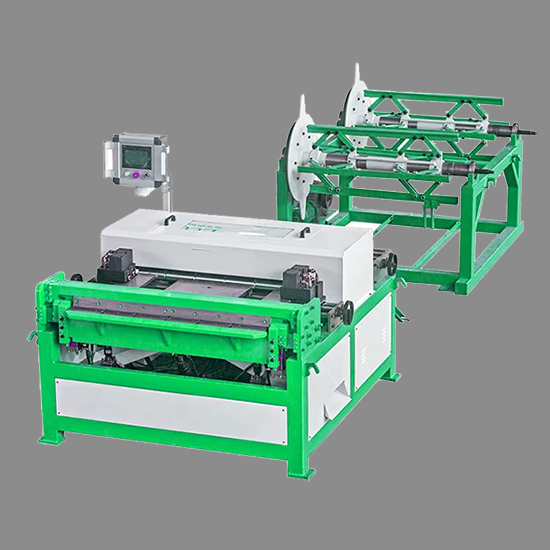

Duct production line III composed of a decoiler, leveler grooving unit, “V” and “⟨” notching unit, cutting unit, bending unit composition. The standard configuration the “V” and “⟨” notching unit make for TDF flange duct, thereinto the “⟨” notching unit also can be used to produce TDF flange. Bending unit can be made with the Pittsburgh match the right angle, also can be sheet metal bending into a “⟨” or “L” type. Greatly improve the utilization of the plate, reduce labor intensity and reduce labor.

Product Description

Product Application

I. Advantage of Products:
1. The latest design can resolve the problems like getting struck, too many repairs form roll-shearing displacements lock machine.
2. The three-line bending function can crimp narrow edges and stably process 0.5-1.2mm galvanized sheet to avoid wasting.
· Mechanical arm clutching, locating and transferring platform
· Displacement lock machine
· Line 3 host+ Single rack
II. Function:
It’s mainly for uncoiling, leveling, beading, punching, locking. Because of its small space requirement and easy to install and operate the machine can upgrade to “super line 4”.
III. Performance Features:
All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
· Under the material-saving mode of CNC system, machine can withdraw material automatically after finishing tasks.
· With production memory functions, the production orders can be tracked and checked.
IV. Main Import Configuration:
· MITSUBISHI HMI Display And PLC
· MITSUBISHI Frequency Converter
· Japan NEMICON Inverter
· Taiwan Hydromax Pump
· Taiwan High Temperature Resistant Tubing
V. Basic Configuration:
· One electric coil cradles, 2 material trays (5-7t each roll)
· One rack
· One host (line3 host)
· One mechanical arm clutching, locating and transferring platform
· One displacement type locking machine
· One set of computer controlling system

     MODEL
  Coil Width
Thickness
 Speed
decoiler     capacity
Dimensions
Power
Weight
BFL-III-1.2×1300
1250  mm
0.4-1.2 mm
   15 m/min
7 tons
4000x1950x1700 mm
7 KW
3.8 ton
