TDC Flange Forming Machine

TDC flange roll forming machine is mainly for manufacturing connecting flanges used in ventilation ducts. The finished flanges have many features such as high working efficiency, good sealing performance, good connecting results, etc. They are suitable for those ducts with large sections.

Description

The TDC flange roll forming machine is for making rectangular duct connectors. Slip on Flange is one of the two universal rectangular duct flange making systems in the world. It can save time and material drastically with its well-seal, strong and durable joint structure. So WINYING is much suitable for producing a duct with a large sectional area.

TDC flange roll former is widely used for manufacturing TDC-20 mm, TDC-30, TDC-40 wide slide on frame flange etc. custom TDC flange profiles can be offered on request. The Slip on Flange lines can also be equipped with a device for injection of sealing mastic directly during the forming process.

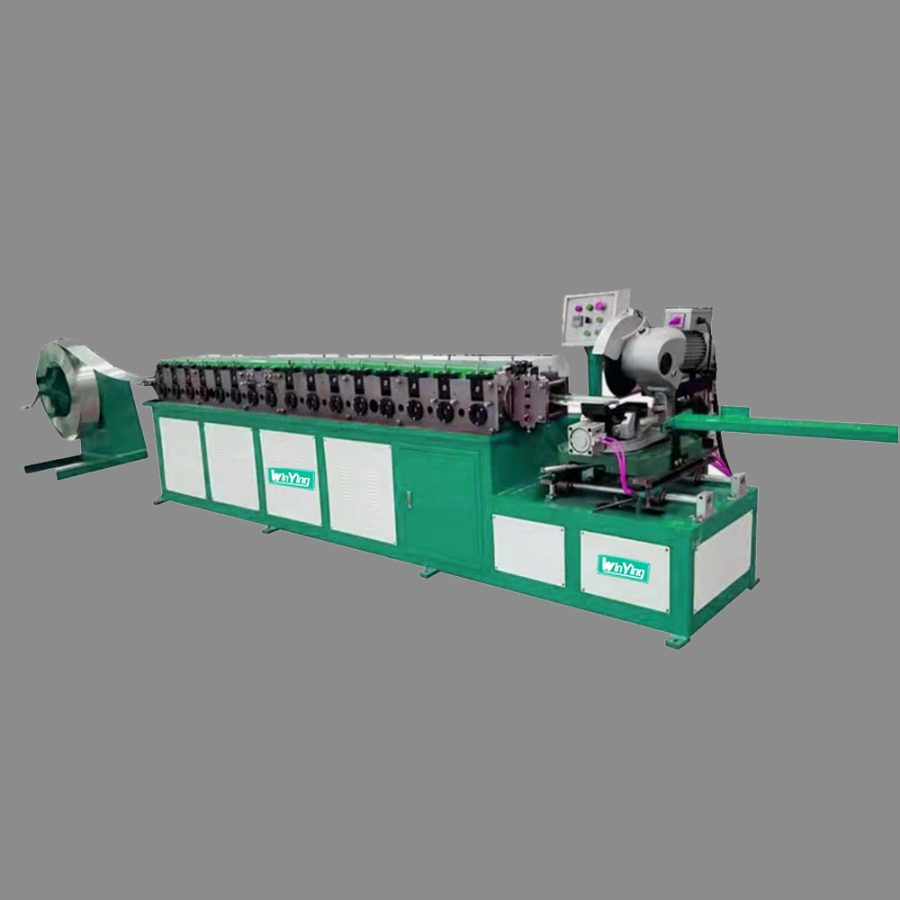

TDC Flange Roll Former Machine is consisted of decoiler, main forming units and cutting system. There are two kind of cutting system, one is simple grinding wheel cutter and the other is automatic cutting with high cutting speed upto 6m/min.



Machine Parameters:

Model Sheet Thickness(mm) Weight(kg) Dimension L*W*H(mm) Power(KW)
T-20 0.5-1.0 1520 4900*1020*1540 3
T-25 0.5-1.0 1530 5500*1020*1540 4
T-30 0.5-1.0 1550 5600*1020*1500 4
T-35 0.5-1.0 1780 5600*1020*1500 4
T-40 0.5-1.2 1800 5600*1020*1500 4
