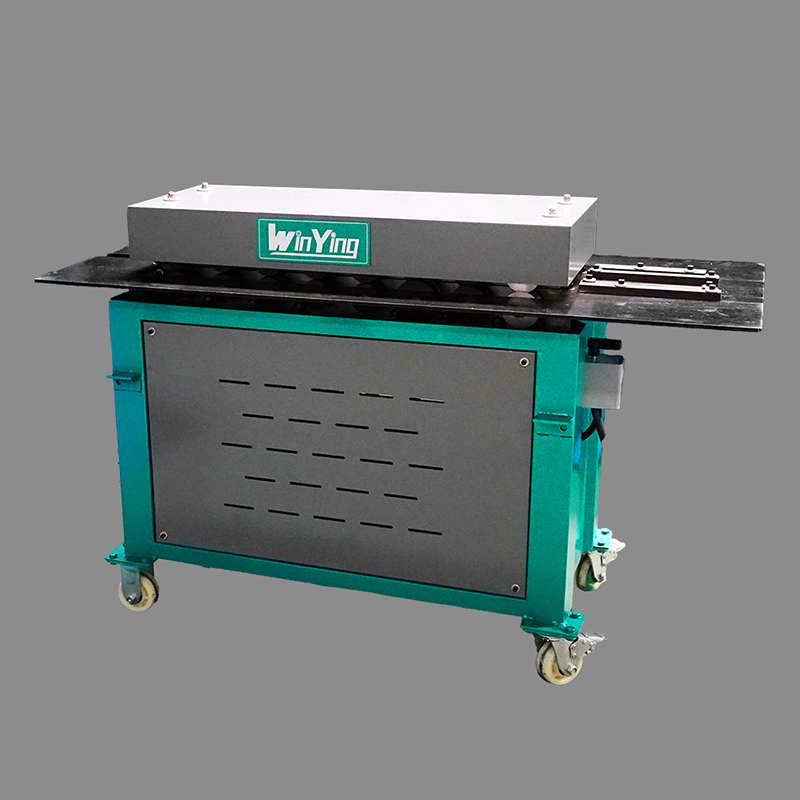

S Type Lock Forming Machine

Product Description

The S type lock forming machine is a multifunctional machine mainly used for lock forming processing of metal sheet connection and closed connection of circular air ducts, which can meet various shapes of bone shapes in air duct manufacturing. The thickness of processed plates is generally1.2mm, suitable for materials such as stainless steel, aluminum plate, galvanized plate, etc.
The structure mainly consists of motor, transmission system, positioning plate, roller, base, and other parts. A small, mobile machine that can be operated by just one person, without the need for many people to operate. It has more functions and is suitable for production requirements. The machine has a wide range of uses, and can be used for many years.

Performance Feature

The machine adopts a steel plate welding structure, which eliminates stress during vibration and has good rigidity and stability; The machine is driven by an electric motor, which achieves rolling and angular forming during movement, with reliable synchronization and smooth movement; Machine processed sheet metal has a flat and smooth surface, consistent dimensions, and beautiful appearance; Reduced the labor intensity of traditional manual operations and improved labor productivity. Place the board between the rollers, adjust the position of the positioning board to make contact with the rollers, then start the motor to rotate the rollers, pull the board into the machine, and perform lock forming processing. S-shaped bone can be made, which can improve the sealing and strength of air ducts, as well as reduce the weight and cost of air ducts.

Machine Parameters
