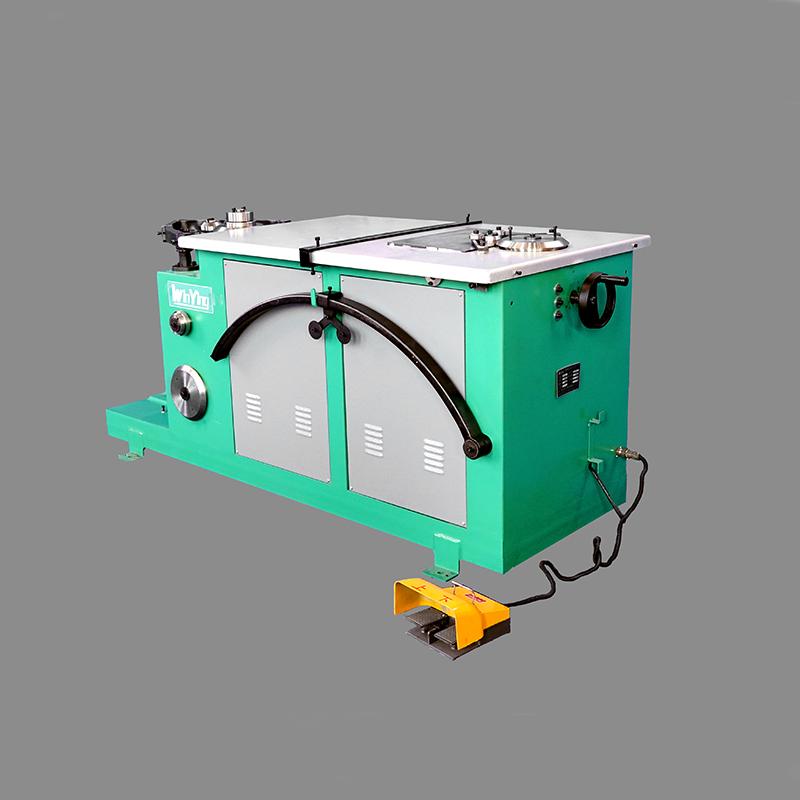

Round Duct Elbow Machine

Description

Performance advantages:

This machine has the advantages of reasonable structure, stable performance, practicality and efficiency, and convenient operation. The rolled bone shape has good flatness, accurate size and angle; The occluded air duct has good sealing and is sturdy and durable. According to the different processing capabilities and ranges, our company’s round pipe elbow biting machines can be divided into models such as SBJX-700 and SBJX-1000. The latter two types use two independent transmission systems, and each set of rollers can be operated separately. Two people can simultaneously complete the bone pressing and bone joining processes. Customers are welcome to choose or customize according to the actual needs of the project.



Function:





Working Schematic Diagram:



Main technical parameters:

model  WY-1.2-1500
Maximum plate thickness (mm) 1.2mm
Pipe diameter range (mm)  φ100-1250mm
Motor power (kW)  1.5×2
Weight (kg)  400kg
External dimensions (mm) L X W X H 1840×850×1030
