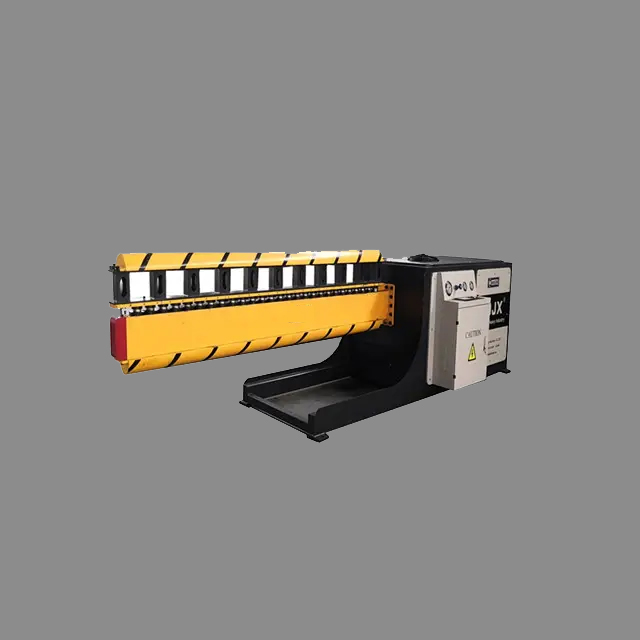

Description
The module technique gives the customer the possibility to choose between a number of options, allowing him to create a machine a number of options, allowing him to create a machine for his specific needs.The frequency controlled main drive ensures a smooth acceleration and an almost noiseless operation.The outstanding patented flying slitter cuts the tubes to lengthwithout noise or hot sparks as known from the saws and provides smooth tube ends without deburring.The design and options fulfill the needs in HVAC to produce in mild steel, galvanized steel, stainless steel or aluminum The corrugation unit allows a reduction in material costs and makes the bigger diameter tubes more rigid.
Performance Features:
1, patented mold, easy to adjust, and has its own patent, replace the mold more trouble and save the province of materials
2, high-speed synchronous cutting system
3, PLC control
4, can be on-site construction
5, can be adjusted
6, high-quality products, high-quality services
7, the system can handle galvanized sheet, aluminum
8, automatic roll out of equipment
9, can produce a variety of different diameter spiral tube
Machine Parameters:
| Diameter range | 80 – 1600mm |
| Thickness of strip | 0.4 -1.3mm Glvanized steel |
| 0.8mm Sinless steel | |
| 0.4-1.2mm Auminum | |
| Strip Width | standard 137mm up to 1mm
thickness, 140mm above. Other widths on request. |
| Lockseam | Outside tube, on the inside on request. |
| Production speed | Max. 60 meters/min. depending on material |
| Cutting system | The pqtented flying slitter |
| Net weight | 2900kg |
| Gross weight | 3200kg |
| Machine dimension | 3000mm*1950mm*1700mm, |
| Package dimension | 3050mm*2000mm*1800mm |
| Options | Automatic length control system, controlled corrugation unit.METU flange slitter Saw blade cutter |
