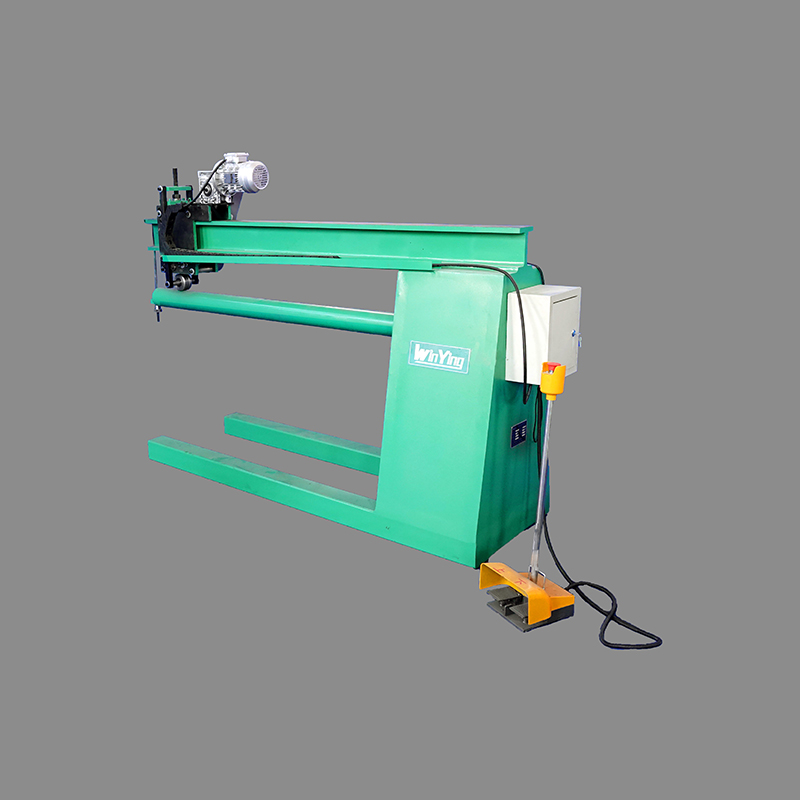

Mechanical Round Duct Seam Machine

Description

Components:

The machine consists of the following parts: fixed parts, transmission mechanisms, and adjustment devices.

  1. Fixed parts: including racks, chassis, etc. The frame is welded with square tubes and steel plates, and the cover is fixed to the frame with screws.
  2. Transmission part: consisting of motor, rolling roller, shaft, and rack.



Performance characteristics:

  1. The body of the circular pipe sewing machine adopts a steel plate welding structure, which eliminates stress during vibration during operation, making the machine have good rigidity and stability;
  2. The circular pipe sewing machine is also driven by a motor, and the sewing operation is controlled by a foot switch, ensuring reliable synchronization and smooth operation;
  3. Machined plates have a smooth surface, uniform size, and beautiful appearance;
  4. The circular pipe sewing machine has replaced traditional manual labor and improved labor productivity.



Operating instructions:

  1. Connect the power supply, start the machine, and observe the operation status of the motor,
  2. Release the front stop lever of the track and extend the circular tube to be processed into the track,
  3. Adjust the fixing bolts on the rolling roller so that the circular pipe joint faces upwards and is tightly fixed between the rolling roller and the track,
  4. Step on the foot switch, and the rolling roller will perform reciprocating motion driven by the motor, squeezing the joint of the circular tube until it is fully formed,
  5. Loosen the fixing bolts, remove the baffle, and take out the processed round tube.



Machine parameters:

Specification Thickness(mm) Tube length(mm) Motor power(kw) Weight (kg) Machine size (mm)
WY-1250 0.4-1.2 1250 0.75 360 2250*610*1450
