Product Description

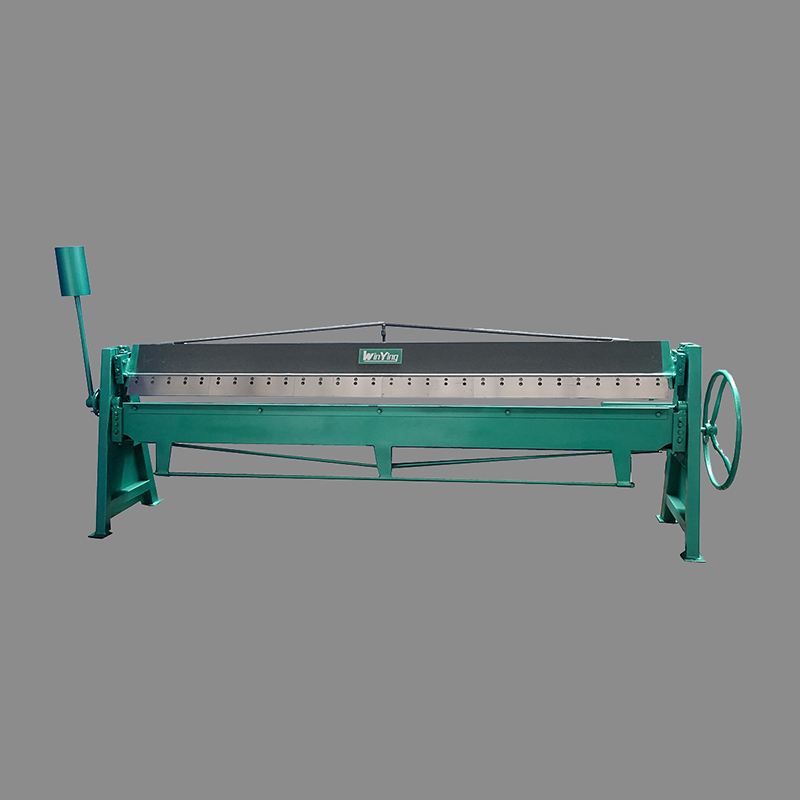

Hand folding machine is a professional equipment for cutting metal sheet materials, widely used in the cutting and cutting of thin plates in automobiles, shipbuilding, building materials, hardware machinery, and metal structures. The shear plate material is based on a tensile strength of less than 48 kg/mm. If other high-strength plates need to be cut, the thickness of the shear plate material should be reduced accordingly. In order to improve the overall tensile strength of this machine, a steel plate welding structure is adopted, which has the characteristics of compact structure
Performance Feature
This machine is made of welded steel plates and adopts a bottom transmission method. The main shaft is installed under the workbench, making the structural layout of the machine very compact and working smoothly. The machine body adopts an integral steel plate welded structure, which has good strength, stiffness, and vibration resistance. The rectangular lower blade can be cut with four cutting edges, extending the service life of the blade. There is also a material blocking mechanism, which can adjust the width of the cutting plate within a limited range. When cutting a large number of plates of the same width, it can greatly improve labor production efficiency.
Machine Parameters
| Model | Folding Angle | Weigh | Dimensions |
| WY-1.5X1300 | 60° | 400KG | 1950*650*1500mm |
| WY-1.5X1500 | 60° | 440KG | 2150*650*1500mm |
| WY-1.5X2000 | 60° | 500KG | 2650*650*1500mm |
| WY-1.5X2500 | 60° | 600KG | 3150*650*1500mm |
