Product Description

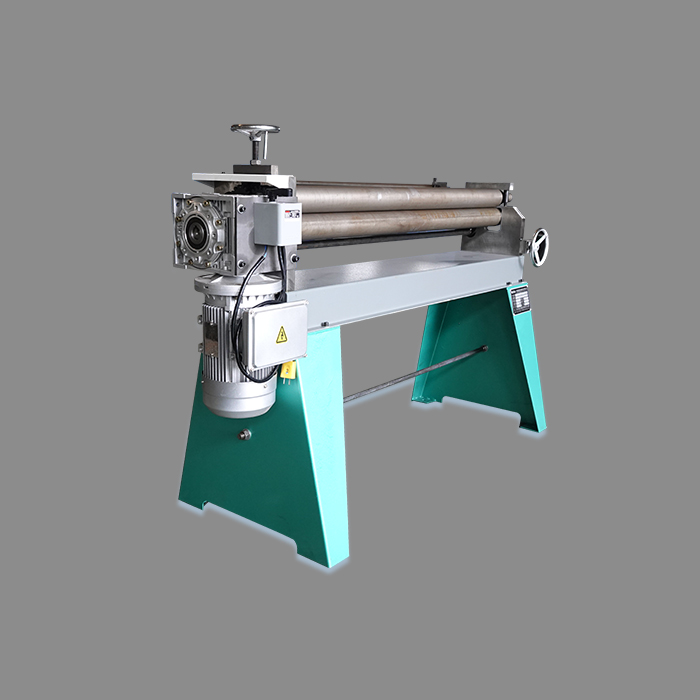

Electric rolling machine is one of the commonly used production equipment for the production of HVAC circular pipelines. Electric rolling machine is mainly used for processing thin plates and small diameter circular tubes for rolling. It also has a pre bending function, making the straight edges smaller and the rolling forming effect better. The electric rolling machine has a length of 1000mm/1300mm/1530mm, suitable for thin plates with a thickness of 0.4-1.5mm. The supporting roller is solid and processed by CNC lathe grinding, polishing, and quenching. It has high hardness and is not easy to scratch, making the rolling forming effect of circular pipes better.
Performance Feature
1.Fast lifting and lowering of side rollers with high efficiency
2.Easy to move
3.With pre bending function
4.Smaller straight edges
5.Steel core strong motor
6.Rapid one-time forming of rolling circle
Machine Parameters
| Model | Length(mm) | Thickness(mm) | UItimate Diameter(mm) | Power(kw) | Weight(kg) | Dimensions(mm) |
| WY-G2*1000 | 1000 | 2 | 100 | 1.5 | 220 | 1500*600*1150 |
| WY-G1.5*1300 | 1300 | 1.5 | 100 | 1.5 | 250 | 1800*600*1150 |
| WY-G1.2*1530 | 1530 | 1.2 | 100 | 1.5 | 270 | 2000*600*1150 |
