Description
Product Description

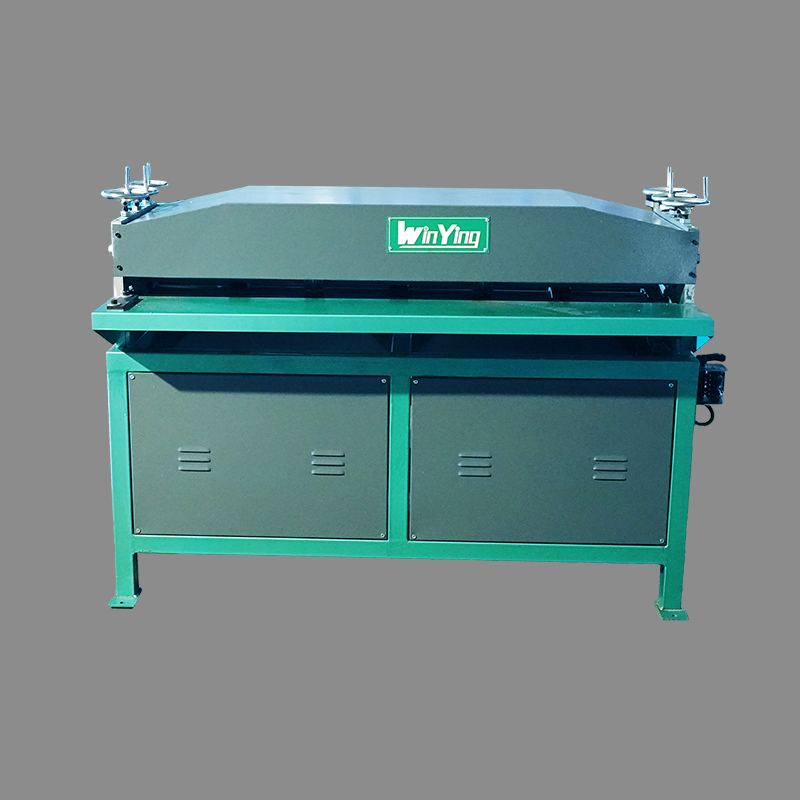

The duct reinforcement machine can roll out multiple reinforcement ribs longitudinally on a longer thin plate plane in one go. It is mainly used for air duct production and metal sheet reinforcement rigidity. Customers can choose the model or special manufacturing according to the thickness, width, and reinforcement quantity of the thin plate.
Performance Feature
Basic configuration of reinforcement machine: frame (optional frame specifications according to customer processing width), two sets of adjustable screw rods, high-strength reinforcement wheels, one set of high-strength rollers, and one set of main motorsHigh strength reinforcement wheel: The reinforcement wheel matched with the reinforcement machine has undergone full body quenching heat treatment, high hardness, good wear resistance, and long service life. It is customized according to customer size requirements.
Machine Parameters
| Model | Plate Width | Thickness | Power | Weight | Dimension |
| WY-1.2-1300 | 1300mm | 0.5-1.2mm | 1.5KW | 450kg | 2900*700*1100mm |
| WY-1.5-2000 | 2000mm | 0.5-1.2mm | 2.2KW | 660kg | 2900*700*1100mm |
