CNC Plasma Cutting Machine

It’s mainly for automatically lofting and cutting the deformed workpiece.You can select a drawing from the new version of CAM-DUCT and input dimensions and choose a way of connection,then the software will start calculating,composing,jacking and cutting automatically according to your requirements.

Product Description

Function:

It’s mainly for automatically lofting and cutting the deformed workpiece.You can select a drawing from the new version of CAM-DUCT and input dimensions and choose a way of connection,then the software will start calculating,composing,jacking and cutting automatically according to your requirements.

Performance Features:

The machine is desktop gantry structure with double-side drive. X & Y axes track are precise cylindrical linear guide rails, precise gear and rack drive, runs stably.Machine frame adopts the whole welding and annealing treatment, main frame is made by medium-sized steel pipe through welding; rail base plates are made through the planer precision processing, high strength, good precision and no deformation.

Crossbeam, side panels and all movable parts are made by aluminum alloy through fine casing and milling, with features of high strength and small inertia, ensuring the high strength and avoiding the cutting positioning instability caused by high inertia.

Adopting HP105 portable arc-pressure height regulator which can automatically regulates the height between cutter and plate to ensure the cutting quality. Scientific structure can effectively avoid collision between cutting head and steel plates owning to reaction rate cannot matches with that of cutting head.

Software:

The machine adopts the latest CAM-DUCT software from Auto Desk company and the software combines technology,data procedure with management and meets cutting requirements of duct workplace by using pre-designed standard duct drawings and parameter settings.The software is easy to learn and operate because it only requires machine dimensions to develop an unfolded view of deformed duct automatically.

Main Technical Parameters

Model Working range Sheet thickness Power Dimensions Weight
WY-1500×4000 1500x4000mm 0.4~6mm 10kw 4700x2000x1200mm 1000kgs
WY-1500×5000 1500x5000mm 0.4~6mm 10kw 5700x2000x1200mm 1100kgs

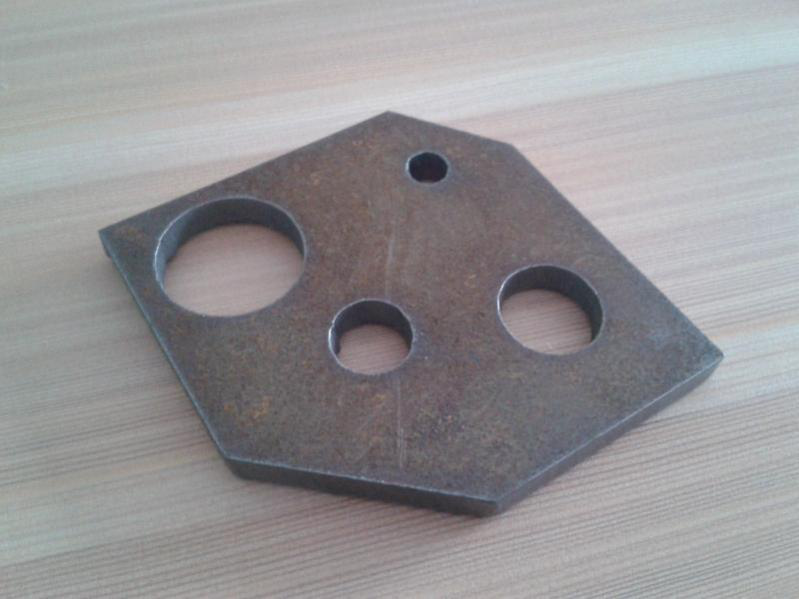

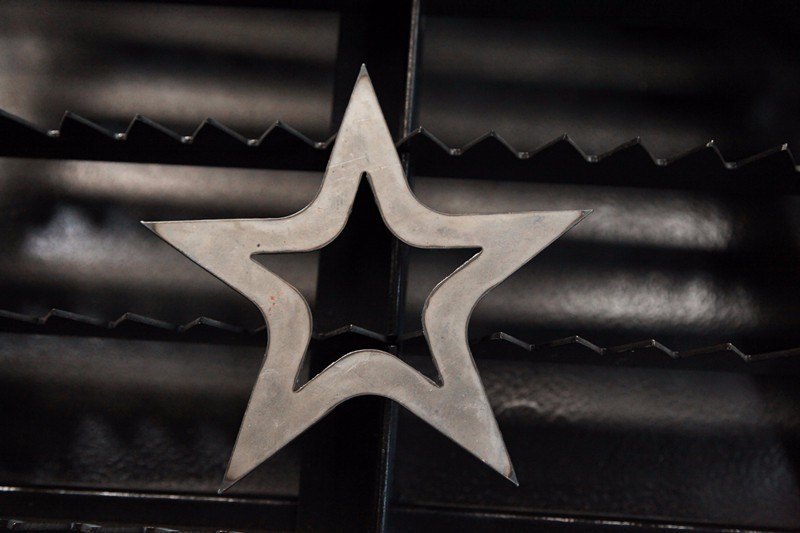

Detailed Images

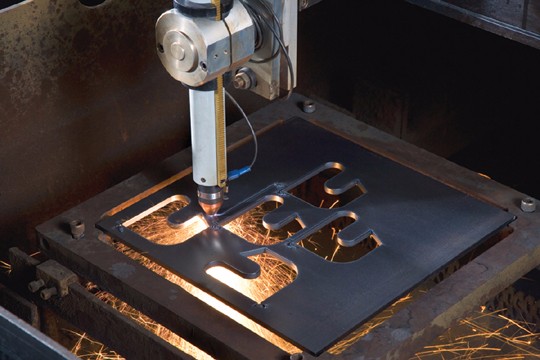

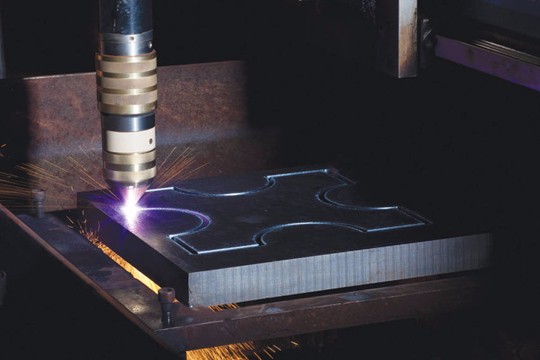

CNC Plasma Cutting Machine
CNC Plasma Cutting Machine

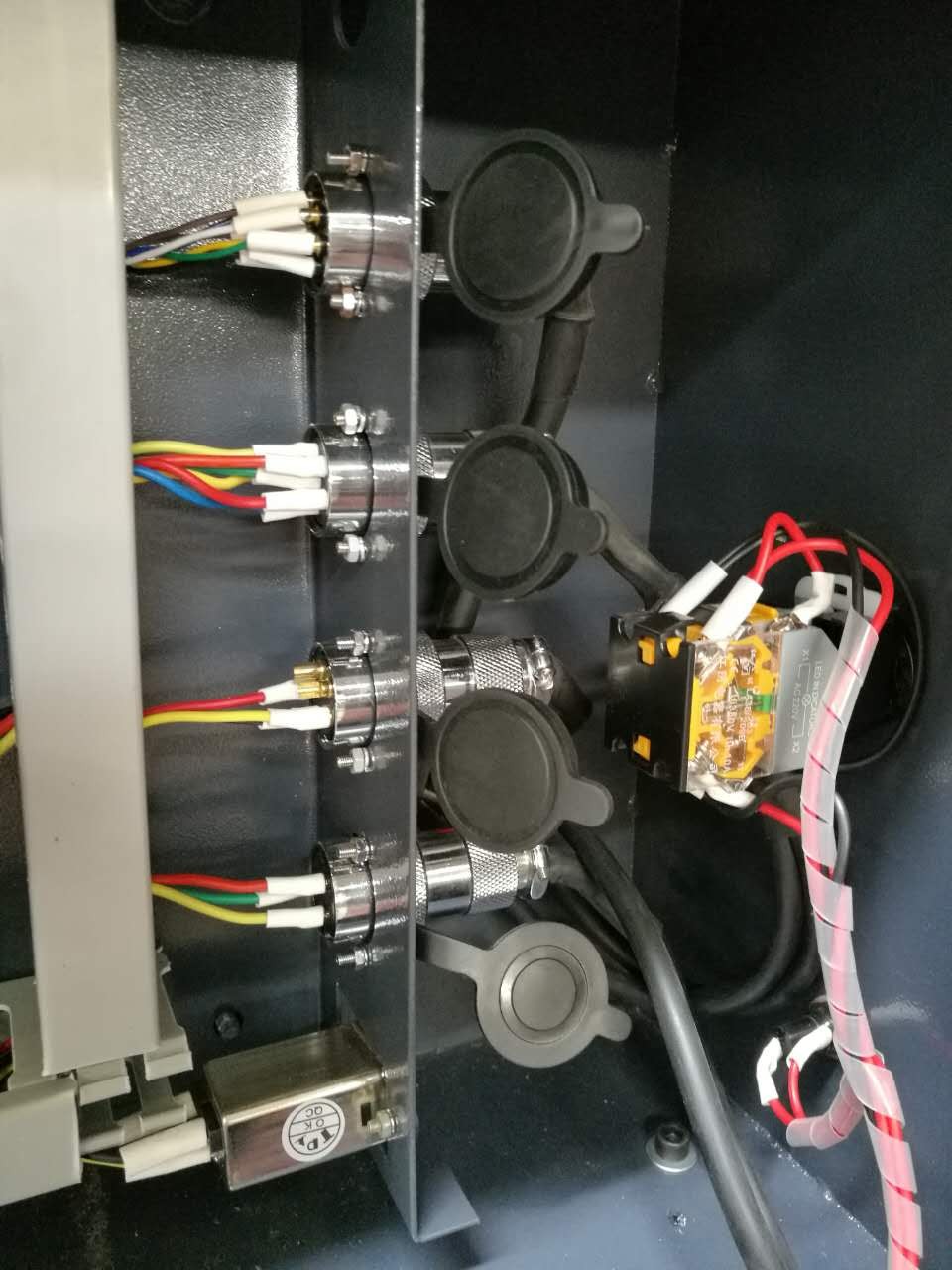

Electric system—Schneider or Simens

We believe that details determines success!

CNC Plasma Cutting Machine
CNC Plasma Cutting Machine
CNC Plasma Cutting Machine
CNC Plasma Cutting Machine

Jiaoda 2100 CNC control system, Hypertherm 65A supply

Head protection device, to protect the machine  from damage

CNC Plasma Cutting Machine
CNC Plasma Cutting Machine
CNC Plasma Cutting Machine
CNC Plasma Cutting Machine
CNC Plasma Cutting Machine
CNC Plasma Cutting Machine
CNC Plasma Cutting Machine

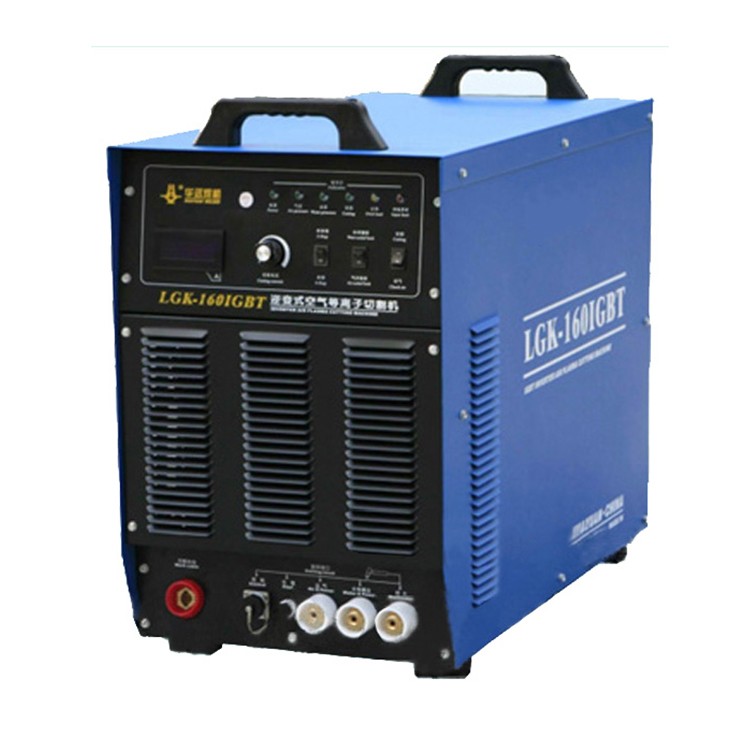

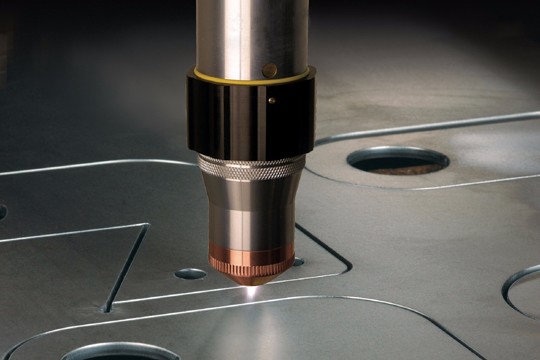

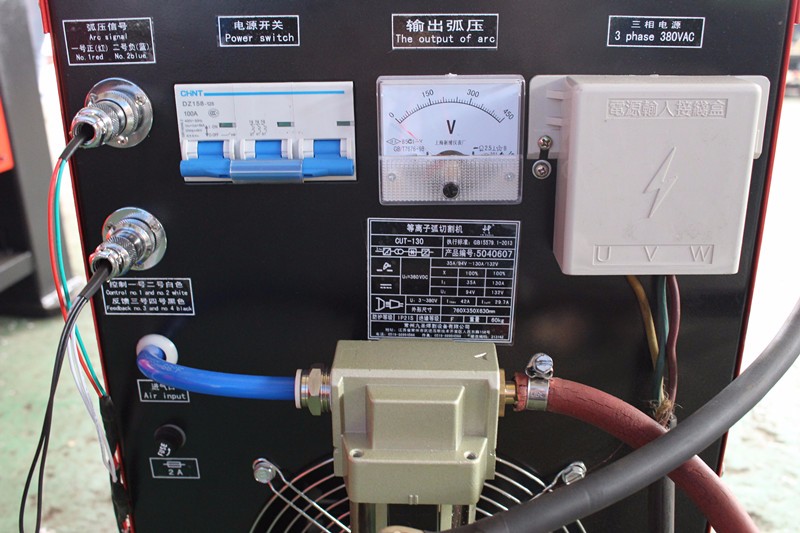

Plasma power–Domestic HUAYUAN

1, Using soft-switching technology

2,Function:help rapidly rising of current

3,Air pressure,water pressure sensor

4,High efficiency and low energy consumption

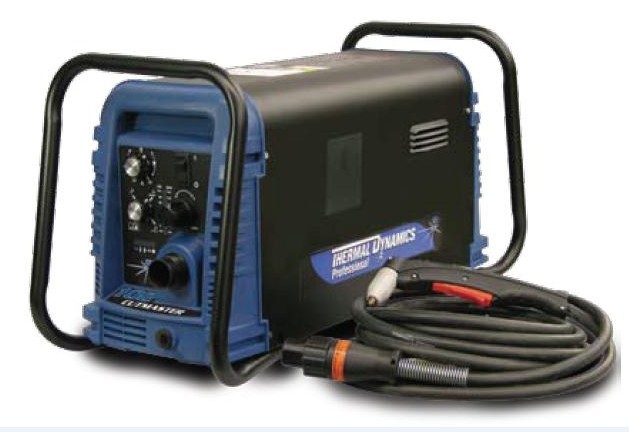

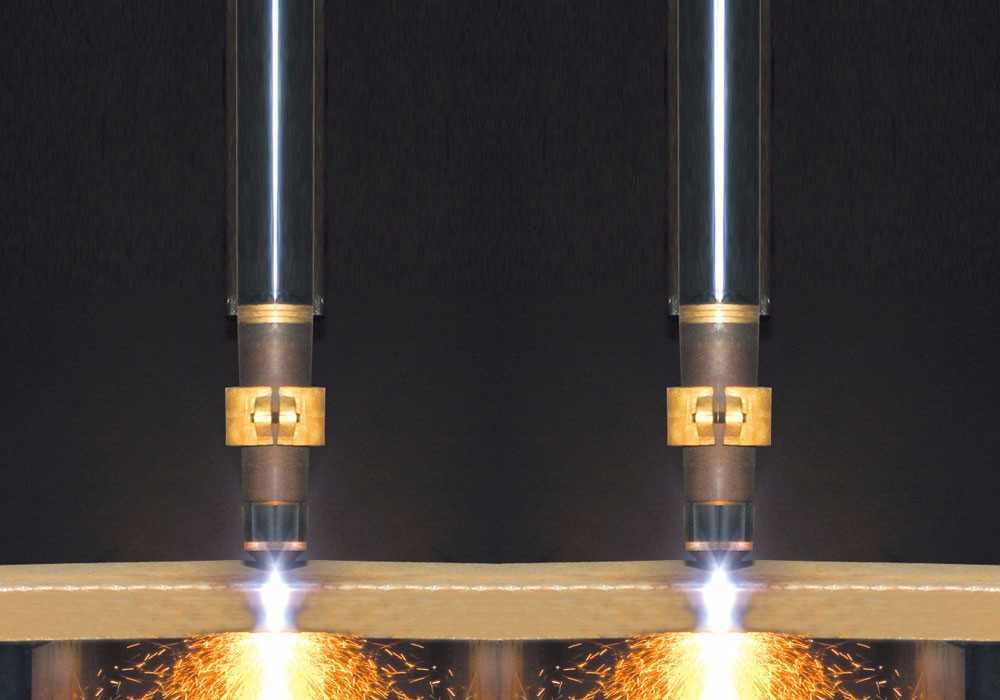

Plasma power–USA Thermadyne

1,A POWERFUL OF 80% DUTY CYCLE

2,Maximum life parts

3,Increased productivity

4,Water mist secondary(WMS) for low cost,high quality cutting on non-ferrous

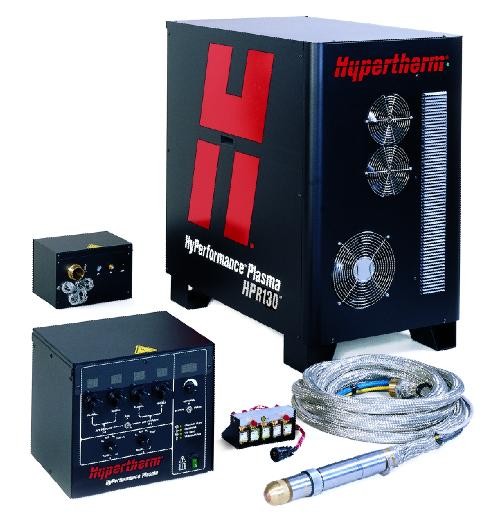

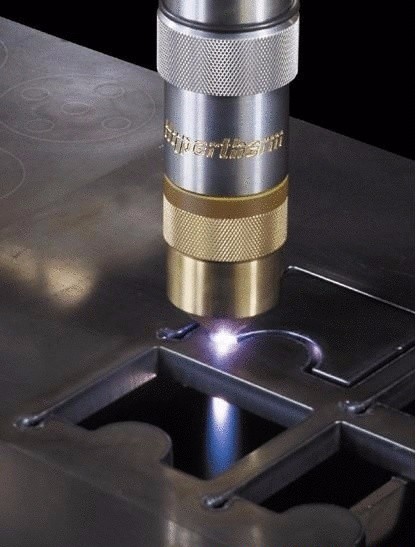

Plasma power–USA Hypertherm

1,Super cutting speed

2,NEW HDI thin stainless steel technology

3,Maximized productivity

4,Minimized operating cost& best reliability
